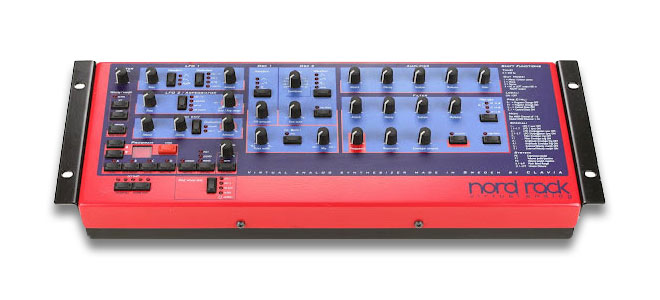

CLAVIA NORD RACK 1 - Pioneer of Virtual Analog Synthesis

In the mid-90s, electronic music was at a crossroads between digital samplers and analog synthesizers. It was during this time that the Swedish company Clavia introduced the Nord Lead, a revolutionary virtual analog synthesizer that combined digital technology with the character of analog sound. Shortly thereafter, its rack version emerged, known as the Nord Rack 1, which offered the same sound engine but in a compact format without a keyboard.

History and Development of Nord Rack 1

Origins of Virtual Analog Synthesis

In 1995, Clavia launched the Nord Lead, which became one of the first commercially successful virtual analog synthesizers. This concept allowed digital modeling of analog circuits, creating an instrument with a warm, dynamic sound but without the limitations of traditional analog components.

Nord Lead quickly became popular among musicians who sought authentic analog sound but also wanted modern MIDI control and the stability of a digital system.

Rack Version – Nord Rack 1

Shortly after the release of the Nord Lead, its rack version was introduced, offering the same sound engine in a more compact design. Nord Rack 1 was ideal for studio producers who did not need an integrated keyboard but wanted full control over the sound via MIDI.

Technical Structure – The Building Blocks of Nord Rack 1 Sound

Virtual Analog Oscillators

Nord Rack 1 uses digital oscillators that simulate classic analog waveforms:

•  Sawtooth – rich harmonic content, ideal for lead sounds.
•  Square/Pulse – variable pulse width for modulated effects.
•  Triangle – smoother, softer sound suitable for pad textures.
•  Noise – noise generator for percussive and experimental sounds.

Thanks to digital technology, Nord Rack 1 offers stable tuning, which was often a challenge for analog synthesizers.

Filters and Modulation

Nord Rack 1 features a flexible filter that enables various types of frequency processing:

•  Low-pass (12 dB/oct 2-pole LPF and 24dB/oct 4-pole LPF) – classic analog filter emulation
   very well-suited for creating synth basses and pads.
•  High-pass (24dB/oct 4-pole HPF) – removal of low frequencies for a cleaner mix.
•  Band-pass (BPF) – emphasizing specific frequency bands.

The filter can be modulated using an LFO or an envelope generator, allowing dynamic sound changes.

Deep Analysis of DSP Architecture

Nord Rack 1 is built on a digital signal processor (DSP) that simulates the behavior of analog circuits. This approach allows faithful emulation of the character of classic analog synthesizers while leveraging the advantages of digital processing, such as tuning stability, polyphony, and complex sound modulation.

The DSP in Nord Rack 1 operates based on modeling analog oscillators, filters, and envelopes, meaning the generated sound is derived from digital algorithm calculations that mimic the actual physical processes of analog sound.

How Does DSP Affect Sound Character?

Digital modeling in Nord Rack 1 is designed to retain the warmth and depth characteristic of classic analog synthesizers.

This process includes:

•  Aliasing-free oscillators – optimized calculations that eliminate unwanted digital artifacts.
•  Dynamic signal processing – each parameter responds naturally and smoothly, similar to
   analog components.
•  Filters modeling analog resonance characteristics – such as simulation of classic
   Moog-style filters.
•  Variable envelopes – designed to respond fluidly to user input.

The result is fast response, rich harmonic spectrum, and an authentic sound character that does not suffer from loss of warmth or dynamics.

The DSP also enables expanded polyphony, particularly with the optional Voice Expansion Board, which increased the instrument's capacity to 12 voices.

Comparison with Other Virtual Analog Synthesizers

Nord Rack 1 emerged at a time when other virtual analog synthesizers were entering the market, such as the Access Virus, Yamaha AN1x, and Roland JP-8000. Each of these instruments had unique characteristics and was favored in different musical styles.

Nord Rack 1 vs. Access Virus

Access Virus (1997) was a powerful polyphonic synthesizer that offered multi-layered sounds and extensive effects like reverb, delay, chorus, flanger, etc. While the Virus had great sonic variability, the Nord Rack 1 was valued for its distinctive, bright, and punchy sound.

Nord Rack 1 vs. Yamaha AN1x

Yamaha AN1x (1997) focused on detailed analog emulation but also incorporated deeper FM modulation, expanding its sound capabilities. Nord Rack 1, compared to the AN1x, offered more intuitive controls and direct access to parameters without requiring deep menu navigation.

Nord Rack 1 vs. Roland JP-8000

Roland JP-8000 (1996) was known for its Super Saw oscillator, which defined the sound of trance and dance music. Although JP-8000 produced massive sounds, Nord Rack 1 offered more precise modeling of analog circuits, making it a more versatile instrument across different music genres.

Why Did Musicians Choose Nord Rack 1?

•  Fast control – no deep menus, direct access to sound parameters.
•  Clean and distinct sound – DSP emulation of analog behavior without unwanted digital artifacts.
•  Polyphony expansion option – upgradeable to 12 voices with the Voice Expansion Board.
•  Flexibility in production and live performance – excellent dynamic response when controlled
   via MIDI.

Nord Rack 1 remains a unique synthesizer that stands out from its competition through its natural sound, rapid response, and intuitive control interface.

MIDI Control and Morphing

One of the most unique features of Nord Rack 1 is morphing, which allows seamless transitions between different parameters via MIDI controllers. This means musicians can modify the sound in real time, making it ideal for live performances.

Polyphony Expansion – Voice Expansion Board

The original configuration of Nord Rack 1 offered 4-voice polyphony, which was limiting for some musicians. Clavia therefore introduced the optional Voice Expansion Board, which increased polyphony to 12 voices upon installation.

How Does the Voice Expansion Board Work?

•  Adds 8 additional voices through extra DSP processors.
•  Expands memory capabilities via a PCMCIA card.
•  Enables storage of up to 297 sound presets.
•  Installation was relatively simple – users just needed to open the chassis, connect the
   expansion board, and link it via a ribbon cable.

Cultural Impact of Nord Rack 1

Nord Rack 1 became a favorite instrument among musicians and producers. Its signature sound appeared in the works of artists such as:

•  Gus Gus – electronic music.
•  Nine Inch Nails – industrial electronic music.
•  The Prodigy – electropunk and breakbeat.
•  Autechre – abstract electronic music.
•  Fatboy Slim – electronic dance music.

Thanks to its flexibility and sound quality, Nord Rack 1 became a classic in virtual analog synthesis.

Conclusion

Nord Rack 1 is a timeless synthesizer that defined the era of virtual analog synthesis.

With the Voice Expansion Board, it could offer expanded polyphony, making it a powerful instrument for recording studios and live performance. Its authentic analog character, flexible filters, and unique morphing made it a legendary electronic music instrument that continues to be valued by musicians today.
