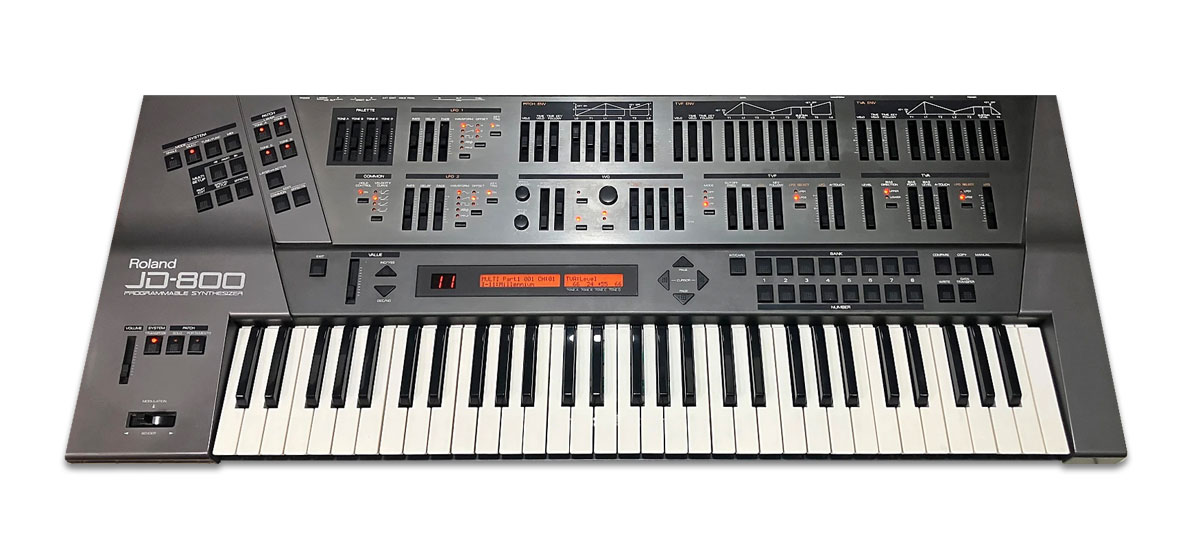

ROLAND JD-800 - A Return to the Roots of Synthesis

The Roland JD-800 is a digital synthesizer introduced in 1991, which became an icon thanks to its hands-on control and complex sound design. At a time when most digital synthesizers relied on menu-driven editing, the JD-800 introduced a fully interactive interface with dozens of sliders, enabling instant manipulation of sound.

The JD-800 features 24-voice polyphony, allowing for rich sound layering and complex harmonic structures.

Sound Architecture and Flexibility

The JD-800 is based on digital synthesis with PCM samples but offers subtractive filtering, giving it an analog-like character.

Key Components of the Sound Architecture:

•  PCM Waveforms – 108 internal samples, expandable with ROM cards.
•  Multi-mode Resonant Filter (TVF) – Offers low-pass, band-pass, and high-pass modes
   with resonance.
•  Two LFOs per voice – Enables complex modulation of frequency, filter, and amplitude.
•  Three Envelope Generators – Dynamic control of amplitude, filter, and modulation.
•  Built-in Digital Effects – Chorus, delay, distortion, EQ, phaser, spectrum, reverb, enhancer.

Memory and Sound Storage Options

The JD-800 includes 64 factory presets and 64 user memory slots, allowing for custom sound design.

Additionally, user sounds can be stored on a Roland M-256E memory card, providing extra storage space for sound programs.

To expand the sound palette, optional ROM cards were available, including the following series:

•  SL-JD80-01 Standard Drums
•  SL-JD80-02 Dance Drums
•  SL-JD80-03 Rock Drums
•  SL-JD80-04 String Ensemble
•  SL-JD80-05 Brass Section
•  SL-JD80-06 Grand Piano
•  SL-JD80-07 Guitars
•  SL-JD80-08 Accordion

Roland JD-990 – A Professional Sound Module

The Roland JD-990 is a rack version of the JD-800 but with an enhanced sound engine.

Key Differences Compared to JD-800:

•  Improved audio converter, providing cleaner and more detailed sound.
•  More internal ROM samples, expanding sound possibilities.
•  Expandable not only with ROM cards but also with one optional ROM board.
•  Improved internal effect processor.
•  New sound modulation capabilities  (Oscillator Sync emulation, Frequency Cross
   Modulation – FXM, Ring Modulation and Analog Feel – The analog oscillator drift emulation).
•  Large LCD display.

The most commonly used expansion is the Roland "Vintage Synthesizer" Expansion ROM Board with the designation SR-JV80-04, which includes classic analog sounds inspired by legendary synthesizers.

JD-990 Stack Configuration Option

The Roland JD-990 modules can be connected in Stack mode, allowing users to expand the basic 24-voice polyphony up to 72 voices when using three modules.

This configuration is ideal for complex sound layering, making it perfect for film music, ambient production, and orchestral synthesis.

Roland JD-800 – Multi Mode and Unique Effects Section

Multi Mode – Maximum Sound Layering Flexibility

One of the most significant features of the Roland JD-800 is its Multi Mode, which allows for layering up to five different sounds simultaneously via MIDI, providing incredible flexibility in creating complex sound textures.

How Does Multi Mode Work?

•  Each sound patch can be assigned to a separate MIDI channel, enabling independent control
   of each layer.
•  Possibility to combine various sound types, such as pad sounds with percussive elements or
   synthetic basses with atmospheric textures.
•  Special drum patch – The JD-800 includes a unique drum patch, where different samples are
   assigned to individual keys, allowing for drum programming directly on the synthesizer.
•  Individual volume and panorama settings – Each layer can have separate volume,
   panorama, and effect settings, allowing for precise mixing of sounds.

Multi Mode is ideal for film music, ambient production, orchestral synthesis, and complex electronic compositions, where layering different sound elements is required.

Unique Effects Section – Seven Effects Simultaneously

Another key feature of the Roland JD-800 is its unique effects section, which allows up to seven effects to be used simultaneously in Patch Mode.

What Effects Does JD-800 Offer?

The JD-800 includes two main types of effects:

Dynamic Effects

•  Distortion/Overdrive – Adds aggressive distortion, ideal for synthetic leads and basses.
•  Enhancer – Highlights harmonic components, adding clarity and punch.
•  Spectral Equalizer – Enables precise frequency adjustments, perfect for sound shaping.
•  Phaser – Adds moving filters, creating depth and motion in sound.

Time-Based Effects

•  Chorus/Flanger – Adds width and spatial qualities, ideal for pad sounds and synthetic textures.
•  Triple Tap Delay – Offers up to 3000 ms of delay per tap, enabling complex rhythmic effects.
•  Reverb – Adds depth and atmosphere, essential for ambient and orchestral sounds.

Effects in Multi Mode

In Multi Mode, dynamic effects are deactivated, but time-based effects are global for all patches. This means that every sound in Multi Mode shares the same settings for reverb, delay, and chorus, leading to a different sound characteristic compared to Patch Mode.

JD-800 as a Reaction to the "Preset Era"

In the 1980s, digital synthesizers such as the Yamaha DX7 relied heavily on menu-driven editing, leading many musicians to stop programming their own sounds and rely solely on factory presets. The Roland JD-800 was a direct response to this trend, bringing back full hands-on control with dozens of sliders, allowing for instant sound manipulation.

While many synthesizers of that era required deep menu navigation, the JD-800 placed all key parameters directly on the front panel, giving musicians immediate access to sound design tools without needing to dig through complex screens. This made the JD-800 a favorite among artists who wanted real-time control over their sound rather than working within restrictive preset structures.

JD-800 as the First Roland Synthesizer with Fully American-Developed Presets

The Roland JD-800 was the first Roland synthesizer whose factory presets were developed entirely in the USA. The sound design process took place at Roland R&D-LA, a short-lived research division in Culver City, California.

A major contributor to the JD-800’s iconic presets was Eric Persing, who later founded Spectrasonics, a company known for industry-leading virtual instruments such as Omnisphere and Stylus RMX. His work on the JD-800 laid the foundation for a new era of preset development, bringing lush, cinematic, and expressive sounds that helped define electronic and film music of the 1990s.

Following his groundbreaking work on the JD-800, Persing went on to create the legendary Distorted Reality sample library in 1995, which became one of the most influential sound design CD-ROMs of its time. "Distorted Reality" featured dark, experimental, and futuristic textures, widely used in film music, electronic production, and industrial soundscapes. Many of the design principles established in JD-800 presets—layered ambiences, evolving textures, and cinematic impact sounds—were further explored and refined in this library.

Through his JD-800 presets, Spectrasonics instruments, and sample collections like "Distorted Reality," Persing’s work continues to influence modern sound designers, composers, and musicians, extending the legacy of the JD-800 far beyond its original hardware form.

JD-800 on the Scene: Who Used It?

The Roland JD-800 was a favorite instrument for many well-known musicians who took advantage of its expressive control and rich sound capabilities.

Among the most notable users:

•  Underworld – The JD-800 was a key instrument for textured synthetic sounds in their
   electronic production.
•  Gary Numan – Used the JD-800 for experimental synthetic sounds in industrial electronics.
•  Vangelis – Utilized the JD-800 for film soundtracks, especially thanks to its expressive
   pads and effects.
•  The Prodigy – Liam Howlett used the JD-800 for aggressive synthetic sounds in early
   rave production.
•  Depeche Mode – The JD-800 was part of their studio setup, helping create dark synthetic
   soundscapes.
•  Tangerine Dream – Used the JD-800 for complex sound layering in ambient and film music.
•  Jean-Michel Jarre – Used the JD-800 for atmospheric synthetic textures in his electronic music.

The JD-800 became an icon of hands-on synthesis, making it a beloved instrument among musicians who seek direct control over sound design.

JD-800 – "The Red Glue Problem"

Unfortunately, even such great instruments as the JD-800 were not without their faults. One of the most serious problems that began to appear with these instruments over time was the so-called "Red Glue Problem".

In The Roland JD-800's keyboards refers to an issue where the epoxy used to attach key weights melts and drips, causing sticky residue, stuck keys, and potentially damage to the keyboard's internal components. This can be a significant problem, requiring disassembly and cleaning of the keybed to remove the glue.

Conclusion

Despite the above problem, the Roland JD-800 is a unique digital synthesizer that revived hands-on control and expressive sound design. Thanks to its 24-voice polyphony, flexible memory, ROM card expansion options, and powerful effects, it became and still is a favorite instrument for electronic musicians.

The Roland JD-990, on the other hand, offers more PCM waveforms, external ROM Board installation option and Stack mode configuration, making it a powerful studio module.
