ROLAND SH-5 - Why Does This Synthesizer Still Sound So Uncompromising?

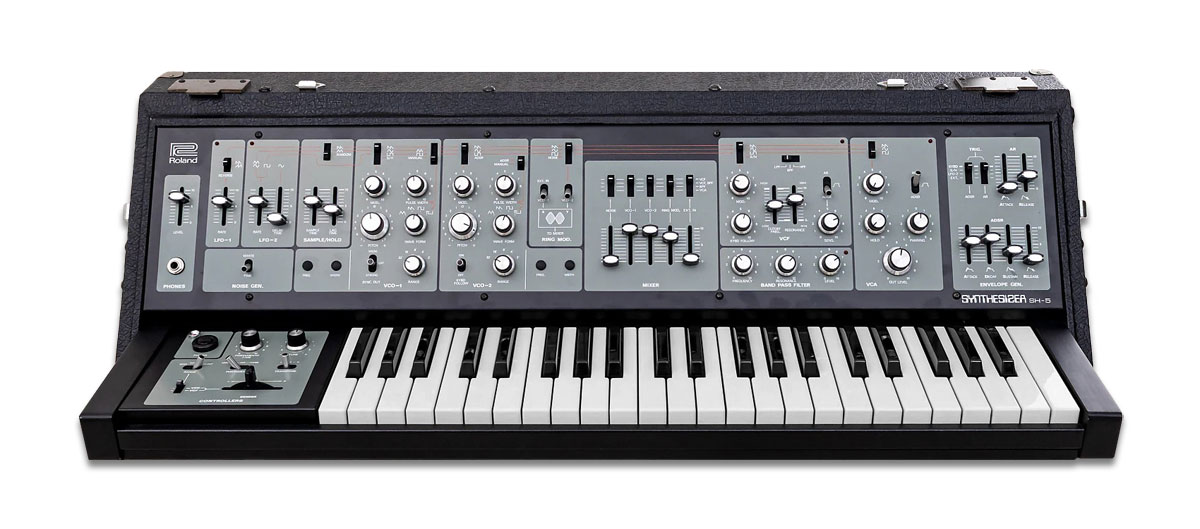

In 1976, Roland introduced the SH-5, a monophonic analog synthesizer that became one of the most distinctive instruments of its time. Unlike standard monophonic synthesizers, it featured a complex sound architecture, including two oscillators, two filters, two amplifiers, and a unique ring modulator.

The SH-5 was designed as a powerful instrument for experimental synthesis, making it a favorite among avant-garde musicians and electronic music producers.

SH-5’s Sound Architecture – Two Oscillators, Two Filters, Two Amplifiers

The SH-5 was monophonic, but thanks to its complex architecture, it could generate extremely rich and layered sounds.

Key Sound Features:

•  Two VCOs with a wide range of waveforms – Offered sawtooth, square, pulse-width, and
   triangle, enabling diverse tonal shaping.
•  Two filters – multimode and band-pass – The SH-5 featured low-pass, band-pass, and
   high-pass filtering, allowing for precise sound shaping.
•  Two amplifiers (VCA) with independent envelopes – Each amplifier had separate ADSR
   envelopes, making complex dynamic adjustments possible.
•  Two LFOs with different waveforms – The SH-5 provided sine, square, triangle, ramp, and
   sample & hold, offering rich modulation possibilities.
•  Ring modulator with external audio input – A unique function that allowed an external audio
   signal to be processed through the ring modulator, opening new possibilities for experimental
   synthesis.

Thanks to these features, the SH-5 could generate a wide range of analog sounds, from deep bass tones to sharp lead lines and complex textures.

Ring Modulator – Unique External Audio Input Capability

One of the most distinctive features of the SH-5 was its ring modulator, which allowed an external audio signal to be routed through it.

How Does the Ring Modulator Work?

The ring modulator functions based on multiplication of two signals, generating new frequency components. The SH-5 allowed an external sound source, such as another synthesizer, microphone, or drum machine, to be routed into the modulator, enabling unique sound experimentation.

Applications of the Ring Modulator:

•  Distortion and frequency decomposition of external signals – Connecting another instrument
   allowed its frequencies to be split and transformed into new harmonic components.
•  Creation of metallic and robotic effects – The ring modulator was ideal for synthetic percussive
   sounds and experimental effects.
•  Interaction with SH-5’s internal oscillators – The modulator could combine internal oscillators
   with an external signal, creating complex sound layering.

This feature was highly uncommon when the SH-5 was introduced, making it a unique instrument for experimental synthesis.

The Secret of SH-5 – Hidden Extreme Modulation Mode

The SH-5 had a unique trick that allowed extreme modulation effects, which were not commonly mentioned in the manual.

How Does It Work?

If LFO 2 was set to its highest frequency, its output could be rerouted to the ring modulator, pushing the LFO into the audio spectrum range. This meant that the SH-5 could generate frequencies similar to FM synthesis, which was highly unusual at the time.

What Did This Mean for Sound?

•  Metallic and digital-like effects, reminiscent of FM synthesis.
•  Unconventional percussive sounds, sharper than standard analog oscillators.
•  Experimental sound textures, useful for film music or industrial electronic production.

This trick was discovered much later, when musicians began experimenting with modulation routing. Thanks to this, the SH-5 became not just a classic analog synthesizer but also an instrument for extreme sound experiments.

Forgotten Features of SH-5

The Roland SH-5 was not only a powerful monophonic synthesizer, but also featured functions that were not always fully utilized. Some of these features were overlooked, even though they could significantly impact sound design.

Parallel Filters for Unique Frequency Manipulation

The SH-5 included two filters that could be operated in parallel, allowing unique frequency layering. Unlike traditional synthesizers, where filters typically function in series, the SH-5 enabled combinations of low-pass, band-pass, and high-pass filtering, unlocking new possibilities for sound shaping.

Stereo Output with Pan Control

Unlike most monophonic synthesizers of its time, the SH-5 featured stereo output, allowing panoramic control over sound placement. This was uncommon among analog synthesizers in the 1970s and provided greater spatial depth in studio recordings.

Advanced Modulation Options

The SH-5 included two LFOs with various waveforms, enabling complex modulation techniques. In addition to standard modulation routes, the LFOs could be linked to filters, amplifiers, and the ring modulator, opening up new possibilities for dynamic sound movement.

Construction of Roland SH-5 – Quality, Durability, and Live Performance

Robust Construction and Materials

The Roland SH-5 was designed as a solid and durable analog synthesizer, capable of withstanding the demanding conditions of live performances. Its massive wooden side panels and metal front panel provided stability and longevity.

•  Wooden side panels – A solid structure that protected the internal electronics from impact.
•  Metal control panel – Resistant to wear, with clearly readable labels.
•  Integrated protective cover – The SH-5 had a sturdy cover, shielding controls during transport.
•  Dedicated storage for the power cable – A special compartment at the back, making transport
   more convenient.

Thanks to these features, the SH-5 has remained well-preserved even after decades, making it one of the best-maintained vintage synthesizers.

Keyboard – Strength or Weakness?

One of the biggest compromises of the SH-5 was its keyboard. Unlike other premium synthesizers of its era, it had a relatively stiff and not very responsive key action, which could be disadvantageous for expressive playing.

•  Plastic keys – Less responsive compared to Moog or ARP synthesizers.
•  Issue with double triggering – Some models had a tendency for unintended double
   triggering.
•  Limited range – The SH-5 had a shorter keyboard, which could restrict some players.

Although the keyboard was not the most pleasant to play, its reliability and durability ensured that the SH-5 was suitable for live performance use.

Live Performance Use of SH-5

The SH-5 was popular among live performers because it provided quick access to controls and a powerful analog sound that cut through the mix with ease.

•  Intuitive control layout – All essential functions were easily accessible, allowing for quick sound
   adjustments during performances.
•  Strong analog sound – With two oscillators, two filters, and a ring modulator, the SH-5 produced
   a thick and aggressive tone, making it ideal for live mixing.
•  Durable construction – The SH-5 was solid and stable, making it perfect for touring and
   concert setups.
•  Stereo output – Unlike many monophonic synthesizers of its time, the SH-5 had stereo output,
   enabling better spatial placement on stage.

The SH-5 was a reliable performance instrument that proved effective in live settings.

Overall Quality and Longevity of SH-5

Thanks to solid construction, high-quality components, and durable materials, the SH-5 has remained one of the best-preserved vintage synthesizers.

•  Electronic circuits – High-quality analog components ensured long lifespan without significant
   degradation.
•  Filters and oscillators – The SH-5 featured stable oscillators and powerful filters, maintaining its
   sonic integrity even after decades.
•  Mechanical durability – Due to its robust build, the SH-5 endured countless performances and
   tours without major issues.

Overall, the SH-5 is an exceptionally durable analog synthesizer, offering excellent sound and reliability, making it a favorite for both live performances and studio production.

Comparison of SH-5 with Its 1970s Competitors

During the 1970s, several iconic analog synthesizers emerged, competing with the SH-5. How did it compare to the competition?

SH-5 vs. Moog Minimoog

Minimoog was legendary for its thick bass and simple interface, while the SH-5 offered a more complex sound architecture, featuring two filters and a ring modulator. Minimoog had stronger oscillators, but SH-5 provided broader modulation capabilities.

SH-5 vs. ARP Odyssey

ARP Odyssey was duophonic, allowing it to play two notes simultaneously, while SH-5 was monophonic. SH-5 had more advanced filters, whereas Odyssey featured more flexible envelopes.

SH-5 vs. Korg MS-20

MS-20 had a semi-modular design, offering greater patching flexibility, while the SH-5 had a fixed architecture. SH-5 had stereo output, which MS-20 lacked. SH-5 was distinctive for its combination of dual filters, a ring modulator, and stereo output, giving it a significant advantage over competitors.

SH-5 in Experimental Music and Studio Production

Thanks to its complex architecture, the SH-5 became a favorite instrument among avant-garde musicians and studio producers.

Electronic Music

The SH-5 was often used for synthetic bass lines, aggressive leads, and experimental sound textures.

Industrial Music

With strong filter resonance and a ring modulator, the SH-5 was ideal for distorted and dark tones, making it perfect for industrial music.

Film Soundtracks

The SH-5 was frequently used for synthetic sequences, adding a futuristic or ominous atmosphere to film scenes.

Artists Who Used Roland SH-5:

•  Orbital
•  Aphex Twin
•  Kraftwerk
•  Pink Floyd
•  Nine Inch Nails
•  Brian Eno
•  Radiohead
•  David Bowie
•  Pet Shop Boys
•  Tangerine Dream
•  Eat Static
•  Skinny Puppy
•  Autechre

Conclusion

The Roland SH-5 was a complex but extremely powerful analog synthesizer, offering unique sound capabilities thanks to two oscillators, two filters, two amplifiers, and a ring modulator.

Due to its ability to route external audio signals into the ring modulator, the SH-5 became a favorite instrument for experimental synthesis, securing its iconic status among analog synthesizers.
