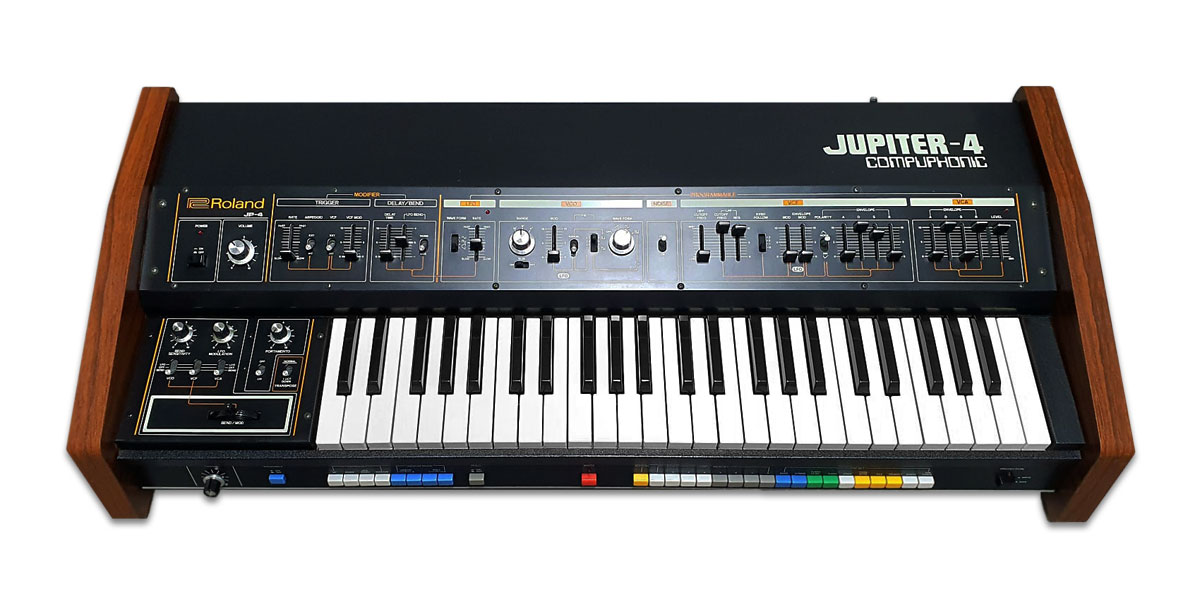

ROLAND JUPITER-4 - A Pioneer of Polyphonic Synthesis

In 1978, Roland introduced the Jupiter-4, its first polyphonic analog synthesizer. This instrument brought digital control of analog circuits, which was revolutionary at the time, enabling programmable memory, an arpeggiator, and polyphonic portamento.

The Jupiter-4 was more affordable than competitors like the Yamaha CS-80 or Sequential Circuits Prophet-5, yet still offered a rich analog sound, which became iconic in early electronic music.

Sound Architecture – Analog Power with Digital Control

The Jupiter-4 featured four voice cards, each containing a VCO, sub-oscillator, VCF, and VCA.

Key Architectural Features:

•  4-voice polyphony – Each voice had its own oscillator, allowing rich layering of sounds.
•  1 VCO per voice + sub-oscillator – Added depth and power to bass sounds.
•  Analog resonant filter (low-pass + high-pass) – Could self-oscillate at high resonance settings.
•  LFO with a wide range – Reached audio frequencies, enabling FM and AM synthesis.
•  Arpeggiator with Up, Down, Random modes – Provided new sequencing possibilities.
•  Polyphonic portamento – Allowed smooth transitions between tones.

The Jupiter-4 had a unique sound, characterized by warmth, richness, and analog depth, making it a favorite among musicians.

Digital Control of Analog Circuits – A Revolution in Synthesis

The Jupiter-4 was one of the first synthesizers to use digital control of analog circuits, a system Roland called Compuphonic.

What Did the Compuphonic Technology Introduce?

•  Preset memory storage – Jupiter-4 offered 10 factory sounds and 8 user memories.
•  Automatic voice allocation – The synthesizer intelligently assigned voices based on
   keyboard playing.
•  Digital stability – Although an analog instrument, digital control ensured precise tuning.

Thanks to these innovations, the Jupiter-4 became a pioneer of modern synthesis, paving the way for the Jupiter-8.

Effects and Modulation Possibilities

The Jupiter-4 featured a built-in chorus, which gave its sound greater width and depth.

Other Effects and Modulation Options:

•  Ensemble chorus – Created a richer, more spacious sound.
•  Sample & Hold LFO – Allowed random modulations, popular in experimental music.
•  Inverted ADSR envelope – Enabled "reverse" modulation of the filter, expanding sound
   design possibilities.

These functions provided complex sound shaping, which was uncommon for polyphonic synthesizers of the time.

Unique Oscillator Instability

Despite having digital control, the Jupiter-4 was known for its slight oscillator instability. This organic drift added warmth and movement, highly valued in film scoring and experimental electronic music.

Monophonic Mode for Solo Sounds

Although a polyphonic synthesizer, the Jupiter-4 could be switched to monophonic mode, allowing polyphonic portamento, which enabled smooth gliding transitions between notes for unique solo sounds.

Extra Deep PWM Modulation in the Roland Jupiter-4

What Is PWM Modulation and Why Is It Important?

Pulse Width Modulation (PWM) alters the width of a square wave oscillator, creating richer harmonic content and enhancing expressivity, movement, and warmth in analog synthesis.

The Jupiter-4 had exceptionally deep PWM, meaning extreme variations in pulse width were possible, leading to aggressive and organic sounds that exceeded many other synthesizers of its time.

Key PWM Features in the Jupiter-4:

•  Wide PWM range – Allowed extreme pulse narrowing, resulting in sharp, aggressive tones.
•  PWM modulation via LFO – Provided smooth movement, adding dynamic character to sounds.
•  PWM combined with a sub-oscillator – Enhanced bass frequencies, making sounds fuller
   and stronger.
•  PWM with resonant filter – Allowed complex sound textures, ideal for experimental music.

Comparison with Other Synthesizers:

•  Jupiter-8 – Had smoother PWM, but less aggressive than Jupiter-4.
•  Roland Juno-6/60 – PWM was gentler, with a narrower range than Jupiter-4.
•  Sequential Circuits Prophet-5 – Featured PWM on multiple oscillators, but lacked
   Jupiter-4’s depth.

Analog Noise Generator with Filtering

Unlike some competitors, the Jupiter-4 featured an analog noise generator, which could be filtered into softer ambient textures.

Polyphonic Glissando as an Experimental Feature

Jupiter-4 enabled polyphonic glissando, meaning all tones slid between each other smoothly, similar to string instruments. This effect was often used in avant-garde synthesis.

Arpeggiator with "Random" Mode

How Did "Random" Mode Work?

Unlike standard arpeggiators that play notes in a fixed order (e.g., up, down, up-down), Jupiter-4’s "Random" mode selected notes unpredictably from held chords.

Key Features of "Random" Mode:

•  Completely random note sequencing, creating chaotic but musically intriguing patterns.
•  Dynamic variability – Changing chords instantly reshaped arpeggios, allowing live improvisation.
•  Integration with filter and LFO modulation, adding movement and expression.
•  Synchronization with external sequencers, enabling complex rhythmic structures.

FM-Style Modulation in Jupiter-4

What Is FM Synthesis and How Did Jupiter-4 Utilize It?

Frequency Modulation (FM) occurs when a low-frequency oscillator (LFO) modulates the pitch of the main oscillator (VCO). This creates complex harmonic structures, producing metallic, digital, or aggressive tones.

The Jupiter-4’s LFO reached audio frequencies, making basic FM-style synthesis possible. While not a true FM synthesizer like the Yamaha DX7, its fast LFO allowed experimental frequency modulation, adding unusual textures and movement to sounds.

Experimental Filter Combinations

The ability to combine low-pass and high-pass filters allowed unique sonic shaping, creating textures from smooth analog pads to aggressive resonant sounds.

Competition at the Time of Release

Jupiter-4 debuted alongside the first polyphonic synthesizers. Its major competitors included:

•  Yamaha CS-80 (1977) – Richer polyphony, but far more expensive.
•  Sequential Circuits Prophet-5 (1978) – Offered 5-voice polyphony and programmable memory.
•  Oberheim OB-X (1979) – More oscillators per voice, but less affordable.
•  Korg PS-3300 (1977) – Modular polyphonic synthesizer with unique architecture.

Despite competition, Jupiter-4 was cheaper and more accessible, making it popular among musicians.

Iconic Songs Featuring the Jupiter-4

Jupiter-4 was featured in numerous legendary songs, where its warm analog sound played a crucial role.

Famous Tracks Using Jupiter-4

•  Gary Numan – "I Sing Rain" – Used for arpeggiated basslines.
•  Duran Duran – "Planet Earth" – Featured synth textures.
•  The Human League – "Being Boiled" – Used for experimental synth sounds.
•  John Foxx – "Underpass" – Jupiter-4 for deep analog basses.

Artists Who Used the Roland Jupiter-4

Jupiter-4 became a favorite instrument among many musicians thanks to its combination of analog warmth and digital control. Notable users include:

•  Gary Numan)
•  Ultravox
•  Duran Duran
•  The Human League
•  John Foxx
•  Vangelis
•  Tangerine Dream
•  Jean-Michel Jarre
•  Cabaret Voltaire
•  Depeche Mode
•  OMD (Orchestral Manoeuvres in the Dark)

Conclusion

The Roland Jupiter-4 was Roland’s first polyphonic analog synthesizer, introducing digital control, preset memory, an arpeggiator, and unique modulation capabilities.
