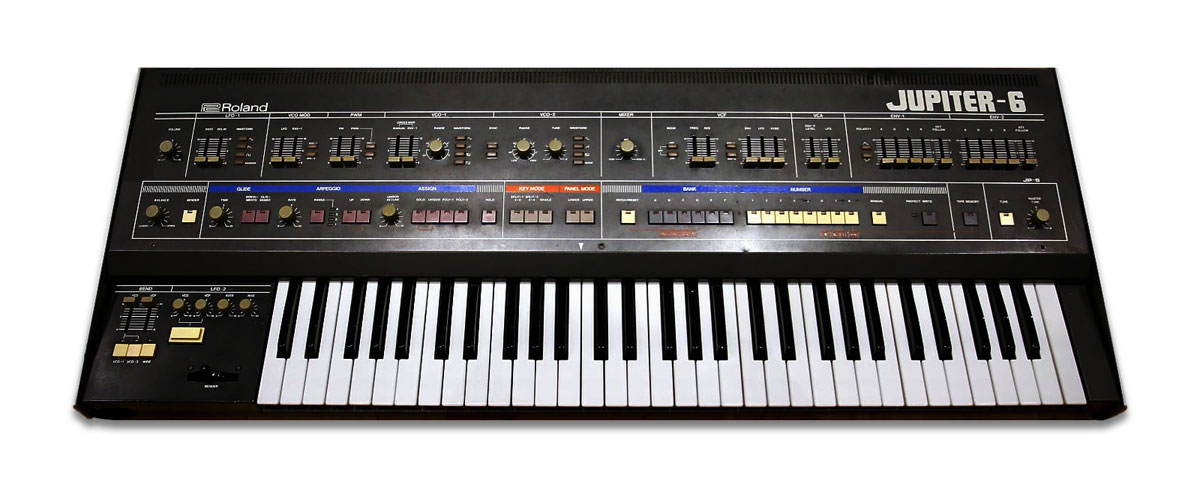

ROLAND JUPITER-6 - The Analog King That Breaks Limits

During the early 1980s, the music industry was evolving rapidly. Analog synthesizers dominated both recording studios and live performances, but new technologies were emerging that would change the way musicians shaped sound.

Roland had already achieved great success with Jupiter-8, which became an icon due to its rich polyphony and warm analog tone. However, Jupiter-8 was large, expensive, and targeted at professional studios. Roland wanted to create a more affordable alternative that retained analog character while incorporating modern features.

In 1983, Roland introduced Jupiter-6, designed as a more accessible alternative to the flagship Jupiter-8. Although it had fewer voices, it introduced key innovations that set it apart from its predecessor.

Jupiter-6 was the first Jupiter model with full MIDI connectivity, featuring a multimode filter, bi-timbral mode, and unique oscillator modulation capabilities, making it an extremely versatile synthesizer.

Prototypes and Technical Changes During Development

Experimental Jupiter-6 Versions

During the development of Jupiter-6, Roland tested several different versions, some of which never made it into final production.

Alternative Oscillator Configurations

•  Some early prototypes included three oscillators per voice, but this design was ultimately
   rejected due to high production costs.
•  Various types of waveforms were tested, including experimental PWM variants, which were
   later simplified in the final version.

Attempts to Expand Polyphony

•  Roland initially considered an 8-voice polyphony, but production costs led them to settle on 6 voices.
•  Plans for expanded voice circuits were discussed, but these versions were never officially released.

Experimental Filter Designs

•  Some prototypes featured a combination of multimode filtering with variable resonance, but this
   concept was later simplified.
•  High-resonance filters with more aggressive characteristics were tested but ultimately not
   implemented due to circuit stability issues.

Alternative MIDI Implementations

•  Early MIDI designs had more advanced synchronization capabilities, but some features were
   simplified due to technical limitations at the time.
•  There were initial plans for an integrated sequencer, but this element was eventually removed
   from the final design.

Jupiter-6 underwent several technical modifications before reaching the market in the form we know today.

Sound Architecture – Flexibility and Innovation

The Jupiter-6 featured 6-voice polyphony, with each voice containing two oscillators (VCOs).

Key Architectural Features:

•  12 analog oscillators (2 per voice) – Allowing rich sound layering.
•  Multimode filter (low-pass, band-pass, high-pass) – Resonance available in all modes.
•  Bi-timbral mode – Ability to split the keyboard into two independent sound layers.
•  Oscillator Sync and Cross Modulation – Enables aggressive FM-style sounds.
•  Unison Mode – All oscillators can be triggered simultaneously for a massive sound.

The Jupiter-6 was highly flexible, making it ideal for a wide range of musical styles.

MIDI Connectivity – A Revolution in Analog Synthesis

The Jupiter-6 was one of the first synthesizers to offer full MIDI connectivity.

What Did MIDI Connectivity Allow?

•  Sequencing – Could be linked with hardware or software sequencers.
•  Parameter Automation – Filter, oscillators, and modulation could be controlled directly
   from a DAW.
•  Synchronization with External Devices – Could be integrated with drum machines and other
   synthesizers.

Thanks to MIDI, the Jupiter-6 became a perfect studio production instrument, ensuring a long lifespan in the music industry.

Multimode Filter – Unique Sound Flexibility

The Jupiter-6 was the first Jupiter model to feature a multimode filter, allowing low-pass, band-pass, and high-pass modes beyond the traditional low-pass filter found on its predecessors.

How Did the Multimode Filter Differ from Jupiter-8?

•  Jupiter-8 only had a low-pass filter and non-resonant high-pass filter, while the Jupiter-6
   provided greater sound variability.
•  Resonance available in all modes – Jupiter-6 could self-oscillate, making it perfect for
   experimental synthesis.
•  Combination of filters with oscillator modulation – Allowed complex sound textures, not
   possible with Jupiter-8.

Thanks to the multimode filter, the Jupiter-6 had a unique sound, making it more aggressive and experimental than its predecessor.

Bi-Timbral Mode – Two Sound Layers Simultaneously

The Jupiter-6 could split the keyboard into two independent sound layers, meaning that each section of the keyboard could play a different sound.

How Did Bi-Timbral Mode Work?

•  Split Mode – The keyboard could be divided into two sections (e.g., bass sound on the left,
   pad on the right).
•  Layer Mode – Two sounds could be stacked together to create rich textures.
•  Independent Filter and Envelope Settings – Each layer could have different parameters, enabling
   complex sound design.

Bi-timbral mode was a significant advantage over the Jupiter-8, which did not offer this functionality.

Oscillator Sync and Cross Modulation – Aggressive Sound Possibilities

The Jupiter-6 featured unique oscillator modulation, enabling aggressive FM-style sounds.

What Did Oscillator Modulation Allow?

•  Oscillator Sync – One oscillator could be synchronized with another, leading to aggressive
   solo sounds.
•  Cross Modulation – One oscillator could modulate the frequency of the other, creating metallic
   and digital-sounding effects.
•  PWM Modulation – Deep PWM modulation added movement and expressiveness to the sound.

Thanks to these features, the Jupiter-6 could generate sounds that were not possible on the Jupiter-8 or other analog synthesizers.

Jupiter-6 Development Compared to Jupiter-8

The Jupiter-6 was introduced as a more flexible alternative to the flagship Jupiter-8 and brought several innovations that made it unique.

Key Differences Between Jupiter-6 and Jupiter-8:

•  Polyphony – Jupiter-6 had 6 voices, while Jupiter-8 had 8 voices.
•  Oscillators – Both models had 2 VCOs per voice, but Jupiter-6 featured more aggressive
   oscillator modulation.
•  Filter – Jupiter-6 had a multimode filter (low-pass, band-pass, high-pass), while Jupiter-8 only
   had a low-pass filter.
•  Bi-Timbral Mode – Jupiter-6 allowed keyboard splitting into two independent layers, which
   Jupiter-8 did not.
•  Oscillator Sync and Cross Modulation – Jupiter-6 offered oscillator synchronization and
   frequency modulation, creating harsher digital effects.
•  MIDI – Jupiter-6 had full MIDI compatibility from the start, whereas Jupiter-8 only received
   MIDI in later versions.
•  Arpeggiator – Both models had arpeggiators, but Jupiter-6 provided more flexible modulation
   options.

Jupiter-6 was more versatile than Jupiter-8, making it ideal for experimental music, while Jupiter-8 was more focused on classic analog sounds.

Faults and Maintenance Issues

The Jupiter-6 is a robust analog synthesizer, but like any vintage instrument, it has several known technical issues that may arise after years of use.

Most Common Issues:

•  Voice circuit failures – Each voice has a separate oscillator circuit, and if one fails,
   polyphony is lost.
•  Tuning instability – VCOs may drift over time, requiring regular calibration to maintain pitch stability.
•  Worn potentiometers – Slider controllers can accumulate dust or wear out, leading to
   inaccurate parameter control.
•  Weak keyboard connections – Over time, contacts under the keys may degrade, resulting in
   non-working keys or poor response.
•  MIDI communication issues – Early models sometimes had errors in MIDI signal transmission,
   leading to sync problems or delay issues.

Possible Repairs:

•  VCO calibration – Regular oscillator tuning keeps frequencies stable and eliminates
   pitch drift issues.
•  Potentiometer cleaning – Contact cleaner can restore slider functionality and improve
   accuracy.
•  Replacing voice cards – If a voice circuit fails, it can either be repaired or replaced.
•  Keyboard restoration – Cleaning and treating keyboard contacts significantly improves
   response.
•  MIDI upgrade – Some technicians offer modernized MIDI circuits for more reliable performance
   and better compatibility.

Thanks to these maintenance options, Jupiter-6 can remain operational for decades, making it a prized vintage synthesizer.

Collectible Value and Market Price

The Jupiter-6 has become a highly sought-after vintage synthesizer, with its value rising significantly over the years.

Price Evolution:

•  1983  – Upon release, Jupiter-6 cost approximately $2,495.
•  1990s – Prices ranged from $1,500 to $2,500, as many units had faulty voice chips.
•  2020s – Fully functional and restored models sell for $5,500 to $7,500, depending on
   condition and historical value.

Factors Affecting Price:

•  Voice chip condition – If chips were replaced or repaired, the instrument's value increases.
•  Overall condition – Models with minimal wear, no yellowed keys, or cracks are more valuable
   than damaged ones.
•  Original packaging and manual – A complete set can significantly increase value among collectors.
•  Modifications – Some upgrades, such as MIDI expansion or improved filters, may increase price,
   but collectors often prefer original state.

Today, Jupiter-6 remains sought after, both among collectors and musicians, looking for authentic analog sound with modern connectivity options.

Iconic Tracks Featuring the Jupiter-6

The Jupiter-6 appeared in many legendary tracks, where its aggressive analog sound played a crucial role.

Famous Songs Using the Jupiter-6:

•  The Prodigy – "Firestarter" – Used for aggressive synth sounds.
•  Duran Duran – "The Reflex" – Jupiter-6 providing synthetic textures.
•  The Chemical Brothers – "Block Rockin' Beats" – Used for experimental synth sequences.
•  Devo – "Whip It" – Jupiter-6 creating mechanical synth lines.

Artists Who Used the Roland Jupiter-6

The Jupiter-6 became a favorite instrument among many musicians thanks to its combination of analog warmth and digital control. Some of the most famous artists who used the Jupiter-6 include:

•  The Prodigy
•  Duran Duran
•  The Chemical Brothers
•  Devo
•  Vangelis
•  Jean-Michel Jarre
•  Cabaret Voltaire
•  Depeche Mode
•  OMD (Orchestral Manoeuvres in the Dark)

Conclusion

The Roland Jupiter-6 was developed as a more accessible alternative to the Jupiter-8, but it introduced innovations that made it a truly unique instrument.

Thanks to its multimode filter, bi-timbral mode, oscillator modulation, and MIDI connectivity, the Jupiter-6 became an extremely flexible synthesizer that secured its place in iconic tracks and studios worldwide.
