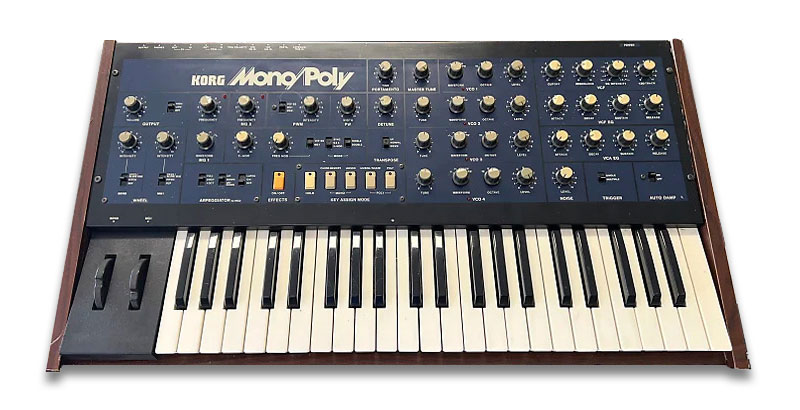

KORG MONO-POLY - The Analog Power of Four Oscillators

In 1981, Korg introduced Mono-Poly, an analog synthesizer that combined monophonic power with the possibility of four-voice paraphony. This instrument became popular thanks to its four VCOs, flexible modulation, and unique effect options, including oscillator sync and cross modulation.

History and Development of Korg Mono-Poly

Mono-Poly was released as a complementary model to the popular Korg Polysix. While Polysix offered full polyphony, Mono-Poly focused on rich monophonic sounds with the option of paraphonic playing. Thanks to its four oscillators, it could function as a fat monophonic synthesizer or as a four-voice paraphonic instrument, where each oscillator played a separate note.

Technological Innovations – What Makes Mono-Poly Unique?

Mono-Poly introduced several key innovations:

•  Four independent VCOs – each oscillator had its own tuning, volume, and waveform.
•  Paraphonic mode – allowed playing up to four notes simultaneously, with all oscillators
   sharing the same VCF and VCA.
•  Oscillator Sync and Cross Modulation – added aggressive harmonic effects and complex
   modulation between oscillators.
•  Two LFOs – enabled independent modulations for different parameters.
•  Arpeggiator – with latch mode, octave range, and note order settings.

Oscillators and Sound Architecture

Mono-Poly utilized four VCOs, each offering four waveform options:

•  Sawtooth
•  Square
•  Triangle
•  PWM (Pulse Width Modulation)

Each oscillator had independent tuning, allowing thick unison sounds or harmonic layering in paraphonic mode.

Filters and Modulation

Mono-Poly featured a classic 4-pole resonant low-pass filter, which gave it a warm analog character. The filter could be modulated via envelope or LFO, enabling dynamic frequency shifts.

Modulation Capabilities

•  Two LFOs – the first LFO offered four waveforms and could modulate various
   parameters, while the second was dedicated to PWM and arpeggiator tempo.
•  Oscillator Sync – enabled synchronization of oscillators for aggressive harmonic effects.
•  Cross Modulation – one oscillator could modulate others, creating complex frequency interactions.

Effects and Arpeggiator

Mono-Poly featured a built-in arpeggiator, allowing:

•  Latch mode – automatic sequential playback of chords.
•  Octave range – expansion of the arpeggio across multiple octaves.
•  Note order – various sequencing modes for creative note progression.

The combination of arpeggiator and paraphonic mode enabled the creation of rich sequential textures, perfect for experimental electronic music.

Connectivity and Studio Integration

Mono-Poly was equipped with CV/Gate inputs and outputs, facilitating connections with modular systems. Additionally, it offered:

•  VCF mod input – allowing external modulation of the filter.
•  VCO mod input – integration with additional oscillators or external LFOs.
•  Stereo outputs – enabling wide mixing and spatial effects.

Comparison with Other Synthesizers of Its Time

Mono-Poly was introduced during the golden age of analog synthesizers. How did it compare to its competitors?

Korg Mono-Poly vs. Korg Polysix

Polysix was fully polyphonic, whereas Mono-Poly offered paraphony with richer oscillators. Polysix had built-in effects, while Mono-Poly focused on pure synthesis.

Korg Mono-Poly vs. Roland Jupiter-4

Jupiter-4 provided full polyphony, but only had one oscillator per voice. Mono-Poly had four oscillators, resulting in thicker monophonic sounds.

Korg Mono-Poly vs. Sequential Circuits Pro-One

Pro-One was strictly monophonic, while Mono-Poly featured a paraphonic mode. Pro-One had faster envelopes, but Mono-Poly had a more advanced oscillator architecture.

Modifications and Expansions of Korg Mono-Poly

Although Korg Mono-Poly is an outstanding instrument in its original form, there are modern upgrades that enhance its capabilities and improve its integration into contemporary studios.

MIDI Expansion and Control Enhancements

One of the most popular modifications is the addition of a MIDI interface, allowing connectivity with DAWs and external sequencers. Some extensions include:

•  MIDI input and output – enabling external control of Mono-Poly.
•  Fully polyphonic portamento – smooth note transitions for expressive performance.
•  New playing modes – such as duophonic, three-voice, and polychord modes.
•  Expanded arpeggiator – allowing custom sequences and MIDI clock synchronization.

Hardware Upgrades

•  Keyboard replacement – some Mono-Poly units suffer from worn-out keys, which can be
   swapped for modern alternatives.
•  Tuning stabilization – incorporation of temperature-compensated oscillators for better pitch
   stability.
•  External CV/Gate modifications – enabling connections with modular systems and analog
   sequencers.
•  Enhanced filter circuits – some modifications provide finer resonance control and better
   modulation response.

Expanding Sound Capabilities

•  Improved oscillator synchronization – allowing more aggressive harmonic effects.
•  Cross modulation upgrades – extending frequency modulation possibilities between oscillators.
•  New LFO modes – offering more waveform options and faster modulation rates.

Thanks to these modifications, Mono-Poly becomes an even more versatile instrument, easily integrated into modern studio setups.

Musicians’ and Producers’ Feedback on Korg Mono-Poly

Korg Mono-Poly has been a favorite among musicians and producers thanks to its unique combination of monophonic and paraphonic modes. Its four oscillators and rich modulation options have secured its place in many studios and live performances.

Artists Who Used Korg Mono-Poly

•  MGMT – used Mono-Poly in Electric Feel, where its arpeggiator and oscillator layers helped
   define the song's signature sound.
•  Survive – the group behind the Stranger Things soundtrack utilized Mono-Poly for dark, atmospheric
   tones reminiscent of darkwave.
•  Chemical Brothers – experimented with Mono-Poly for electronic beats and sequences.
•  Tangerine Dream – legendary electronic group, used Mono-Poly for their ambient and
   sequenced textures.
•  Juno Reactor – used Mono-Poly in film soundtracks and experimental electronic music.

Musicians appreciate Mono-Poly’s thick analog sound, versatile modulation capabilities, and unique arpeggiator, enabling creative sequence layering.

Cultural Impact of Korg Mono-Poly

Mono-Poly became a favorite instrument among many musicians, with its distinctive sound appearing in the works of artists such as:

•  Tangerine Dream
•  The Orb
•  808 State
•  Juno Reactor
•  The Chemical Brothers
•  etc.

Conclusion

Korg Mono-Poly is a timeless analog synthesizer that defined a new approach to monophonic and paraphonic synthesis. Thanks to its four oscillators, flexible modulation, and unique effects, it became an icon of electronic music. Even today, it remains an inspiration for musicians and producers.
