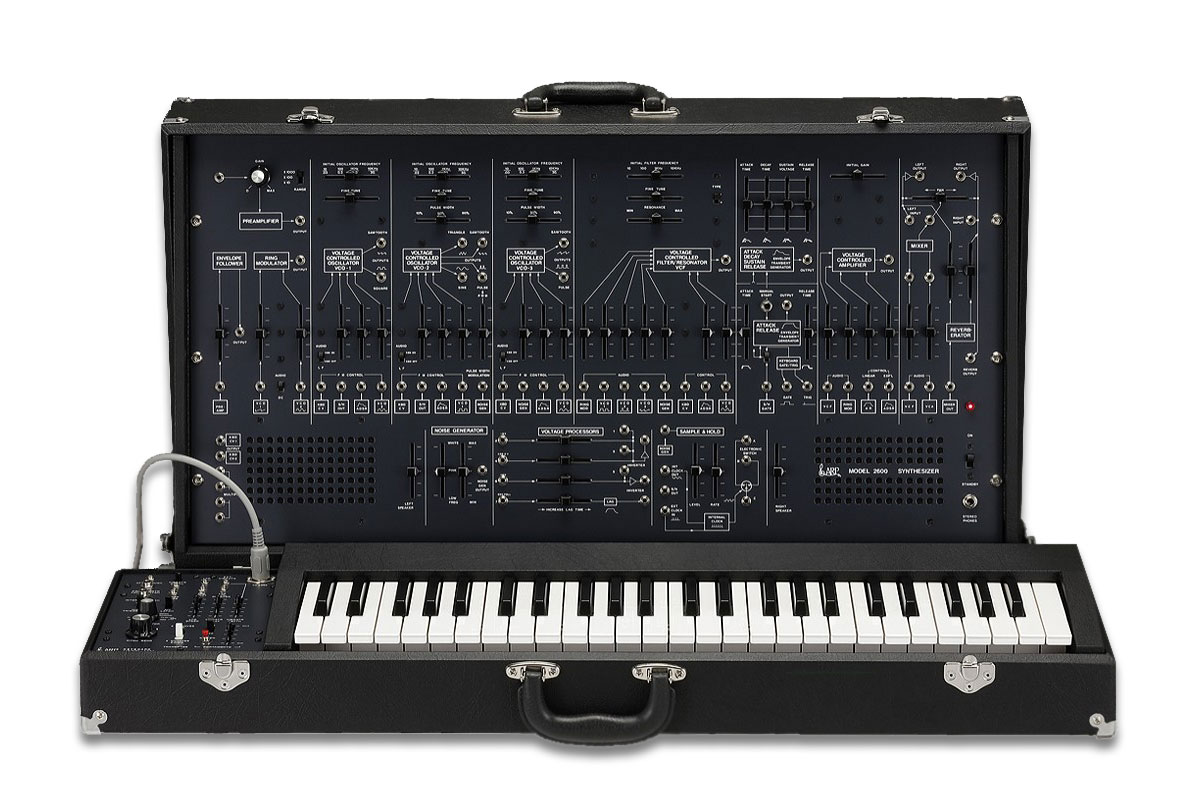

ARP 2600 FS - A Symbol of Modular Freedom in Analog Synthesis

Synthesizers are like musical alchemy – combining oscillators, filters, and modulation to create soundscapes that define entire generations of music.

The ARP 2600 FS is no exception. Its semi-modular construction, rich analog sound, and flexible routing have secured its place in the hearts of musicians and producers alike. This instrument has become a legend in electronic music, crossing genres from progressive rock, synth pop and film scoring to industrial electronic music.

History of ARP 2600 – From Laboratories to Concert Stages

Origins and Innovation

At the time of ARP 2600’s inception, synthesis was dominated by massive modular systems that required extensive technical knowledge to operate. Alan R. Pearlman, founder of ARP Instruments, realized that musicians needed something more intuitive – A synthesizer that would combine the flexibility of a modular system with simplified controls.

Development took place throughout the 1970s, with the first version of the ARP 2600 debuting in 1971. This model introduced pre-wired modules, simplifying sound synthesis while still allowing manual patching for advanced modifications.

Limited Edition Korg ARP 2600 FS (2020)

The revival of this legend came in 2020, when Korg introduced the limited-edition ARP 2600 FS. This reissue was a faithful replica of the original model, maintaining authentic analog circuits while adding modern enhancements such as MIDI, USB connectivity, and XLR outputs.

The ARP 2600 FS brought historic sound with modern functionality to today’s music scene, making it one of the most sought-after analog synthesizers.

Oscillators – The Heart of ARP 2600 FS

The ARP 2600 FS features three voltage-controlled oscillators (VCOs), which form the foundation of its sound generation. Each oscillator offers six different waveforms, providing a broad range of sonic possibilities.

•  VCO1, VCO2, and VCO3 operate from 5 Hz to 16 kHz, allowing deep subharmonic bass and
   high-frequency FM modulation possibilities.
•  VCO2 can be synchronized with VCO1, creating harmonically rich tones with stable spectral
   components.

Thermal Stability of Oscillators – The analog circuits in ARP 2600 FS use temperature-compensated transistors, minimizing tuning drift as the circuits warm up.

Filter Characteristics – Two Systems for Distinct Sonic Profiles

The ARP 2600 FS is one of the few synthesizers that allows manual switching between two filter types, replicating different revisions of the vintage ARP 2600.

Technical Details:

•  ARP 4012 (1971–1975) – Inspired by the Moog Ladder Filter, producing warmer, smoother tones with
   slight distortion at higher resonance settings.
•  ARP 4072 (1976–1980) – A later design with sharper filtering, emphasizing midrange frequencies
   more strongly.

Resonance Response – Maximum resonance allows self-oscillation, ideal for synthetic percussive sounds.

Harmonic Filtering – The ARP 2600 FS filters resonant peaks, enabling analog vocal formants.

Signal Path and Patching – Modular vs. Fixed Connections

The ARP 2600 FS is semi-modular, meaning that key signal paths are pre-wired, while still allowing manual patching via CV and audio jacks.

Technical Details:

•  Internal Wiring – The default configuration is already connected, meaning users don’t need cables
   for basic functionality.
•  External Patching – CV and Gate connectors allow linking various modules, making FM synthesis,
   oscillator cross-modulation, and external filter control possible.
•  Ring Modulator – Enables combination of two signals, producing metallic characteristics for robotic
   effects and percussive synthesis.

Voltage Control and Sound Dynamics – Exponential vs. Linear Response

Voltage control is critical in analog synthesis for shaping the sound. The ARP 2600 FS supports both exponential and linear control, giving it a unique dynamic behavior.

Technical Details:

•  Exponential Control – Used for VCO tuning, meaning that voltage changes result in a logarithmic
   frequency response – Ideal for musical pitch tracking.
•  Linear Control – Used for filters and amplitude modulation, enabling smooth spectral changes
   without abrupt shifts.
•  External CV Inputs – Allow connection with other analog modules, turning the ARP 2600 FS into
   a fully modular system.

Microphone Preamp and External Inputs – Sound Processing Capabilities

The ARP 2600 FS is not just a classic synthesizer – It features a microphone preamp, allowing external audio sources to be processed through its analog circuits.

Technical Details:

•  External Microphone Input – Sound from a microphone can be filtered and modulated for creative
   sound design.
•  Vocal Processing – Filters can shape the human voice, replicating spoken vowel phonetics like
   a formant filter.
•  Guitar & Drum Processing – Electric guitars and drum machines can be run through the
   ARP 2600 FS, creating new hybrid analog-modulated tones.

ARP 2600 as an Effects Processor – Experimental Applications

Thanks to its open architecture, the ARP 2600 FS can be used as a sound processor, similar to some modular Eurorack units.

Technical Details:

•  Analog Filtering for External Signals – Such as routing guitar audio through a Moog-style filter
   for retro effects.
•  Deep Frequency Modulation – Controlling tone color using low-frequency oscillations (LFO).
•  Resonant Reverb – Its built-in spring reverb can be utilized for extreme ambient textures with
   deep saturation.

Modern Variant – Korg ARP 2600 M (2022)

In 2022, Korg introduced a scaled-down version of the ARP 2600 FS, named ARP 2600 M. This model retains the same analog circuits and sonic quality but in a more compact format.

•  Smaller size – Ideal for mobile production.
•  Same analog architecture – Ensuring full authentic sound reproduction.
•  Modern connectivity – MIDI, USB, same as the larger model.

This instrument is perfect for musicians seeking the ARP sound in a portable form factor.

Cultural Impact of ARP 2600

Legendary Songs Featuring ARP 2600

•  Jean-Michel Jarre – Oxygene.
•  Herbie Hancock – Chameleon.
•  Stevie Wonder – Innervisions.
•  Pink Floyd – Shine On You Crazy Diamond.

Artists Who Used ARP 2600

•  Jean-Michel Jarre – Pioneer of electronic music.
•  Herbie Hancock – Jazz fusion innovator.
•  Depeche Mode – Synth Pop Stars.
•  Trent Reznor (Nine Inch Nails) – Industrial experimentation.
•  Daft Punk – Masters of analog production.
•  Orbital – Elecronic music magicians.
•  etc.

Conclusion

The ARP 2600 FS is more than a vintage relic – It continues to inspire musicians and producers today. Its flexibility, rich analog tone, and unique modular features make it a timeless icon in electronic music history.

Thanks to the Korg ARP 2600 FS reissue (2020) and the modern ARP 2600 M (2022), its legacy lives on, shaping new sounds in studios worldwide.
