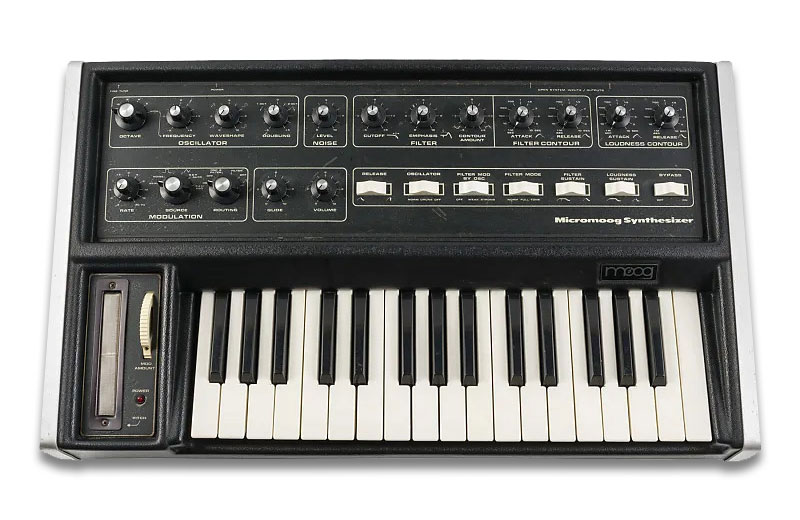

MOOG MICROMOOG - The Monophonic Legend That Continues to Inspire

Moog Micromoog is a monophonic analog synthesizer produced between 1975–1979 as a more affordable alternative to the legendary Minimoog. Although designed as a simplified model, the Micromoog retained the distinct Moog sound, flexible modulation options, and unique control features, making it a sought-after instrument among musicians and collectors to this day.

History and Development of Moog Micromoog

The Micromoog was developed as a budget-friendly alternative to the Minimoog, one of the most popular analog synthesizers at the time. Its goal was to offer an accessible entry into synthesis for musicians who couldn’t afford more expensive models.

The development of the Micromoog involved Jim Scott, who collaborated with Tom Rhea and David Luce, with final electronic refinements by Robert Moog himself. The result was a compact yet powerful synthesizer, maintaining the classic Moog sound while introducing several innovations that set it apart from other models.

The Micromoog later became the foundation for the Multimoog, which expanded its capabilities by adding a second oscillator, a larger keyboard, and advanced modulation features.

Technological Innovations – What Makes Micromoog Special?

The Micromoog introduced several key innovations that distinguished it from other analog synthesizers:

•  Single Variable VCO – The oscillator allowed continuous waveform blending from sawtooth
   to pulse.
•  Sub-octave generator – Added one or two octaves below the main oscillator, creating richer
   bass tones.
•  24dB/oct 4-pole low-pass filter – A classic Moog filter with its own envelope generator and
   frequency modulation via the oscillator.
•  Two envelope generators – Instead of a standard ADSR, the Micromoog featured two
   A(S)R envelopes, enabling rapid dynamic changes.
•  Ribbon controller – Instead of a traditional pitch-bend wheel, the Micromoog included a built-in
   ribbon controller for fluid pitch changes.
•  Moog Open System – A pre-MIDI system allowing connection with other Moog synthesizers
   and external modules.

Oscillators and Sound Architecture

The Micromoog used a single VCO, offering continuous waveform control between sawtooth and pulse. Thanks to its sub-octave generator, it could add one or two octaves below the main oscillator, giving the sound depth and power.

The filter was a classic Moog low-pass, featuring its own envelope generator and oscillator-driven frequency modulation, enabling complex sonic variations.

Modulation and Parameter Control

The Micromoog provided wide modulation possibilities, which were uncommon in synthesizers at this price point:

•  LFO with pulse and sawtooth waves – Enabled modulation of oscillator frequency, filter
   cutoff, and amplifier.
•  Sample & Hold – Generated random modulations, adding an experimental character to the sound.
•  External CV/Gate inputs – Allowed connection with other Moog synthesizers or modular systems.

Expanded Features

The Micromoog contained several unique functions, expanding its sonic capabilities:

•  VCA bypass – Enabled sustained tones without triggering via keys, ideal for drone sounds.
•  VCF tone mode – Switches between standard filter behavior and an alternative tonal
   mode, providing brighter characteristics.
•  Release on/off – Allowed quick envelope changes, useful for live performance dynamics.

Connectivity and Studio Integration

The Micromoog was equipped with CV/Gate inputs and outputs, enabling integration with other analog synthesizers. Additionally, it featured:

•  Moog Open System – A pre-MIDI system for connecting with other Moog modules.
•  Cinch Jones connectors – Standard Moog S-triggering for external sequencer compatibility.

Comparison with Other Synthesizers of Its Era

The Micromoog emerged during the golden age of analog synthesizers. How did it compare to competitors?

Micromoog vs. Moog Prodigy

The Prodigy had two oscillators, including oscillator sync, while the Micromoog had only one oscillator, but featured a sub-octave generator, noise generator and external input for audio signal processing.

Micromoog vs. ARP Axxe

The Arp Axxe had rougher and more accurate sound, whereas the Micromoog offered warm and frequency-consistent tone.

Micromoog vs. Roland SH-1000

The SH-1000 had more presets, but the Micromoog provided greater modulation flexibility.

Unconventional Use of the Ribbon Controller on Moog Micromoog

One of the most unique features of the Moog Micromoog is its ribbon controller, replacing the traditional pitch-bend wheel. This touch-sensitive strip allows fluid pitch changes, unlocking experimental techniques.

Interesting Techniques with the Ribbon Controller

•  Microtonal glissando – Enables smooth pitch shifts, ideal for experimental music or Eastern
   melodic structures.
•  Theremin-like effects – The ribbon controller can be used like a theremin, allowing continuous
   pitch alterations without discrete note transitions.
•  Dynamic vibrato – Subtle finger movements on the ribbon controller allow expressive vibrato, adding
   liveliness to the sound.
•  Filter modulation – Some musicians link the ribbon controller to the filter’s frequency input, achieving
   seamless timbral changes.
•  String instrument simulation – Due to its continuous control, it can mimic violin glissando or cello
   legato phrasing.

The ribbon controller on the Micromoog is not just an alternative to pitch-bend; it is also a powerful tool for experimental sound design.

Artists Who Have Used or Continue to Use Moog Micromoog

The Micromoog became a favorite instrument among many musicians, admired for its compact size, flexible modulation, and classic Moog filter. Here are some artists who have used or still use it:

•  Jean-Michel Jarre – Used the Micromoog for experimental sequences and cinematic atmospheres.
•  Herbie Hancock – Used the Micromoog as a companion to the Minimoog, crafting funk basslines.
•  Gary Numan – His iconic new wave synth sound often included the Micromoog.
•  Devo – Used the Micromoog for aggressive synth riffs in their experimental music.
•  Klaus Schulze – Incorporated the Micromoog into ambient and sequencer-driven compositions.
•  John Carpenter – The legendary film composer used the Micromoog for dark, atmospheric textures.
•  Richard Barbieri – Member of Porcupine Tree, who employed the Micromoog for textured
   synth layers.
•  Liquid Stranger – Experimental electronic producer utilizing the Micromoog for unique bass sounds.
•  Chick Corea – Jazz keyboardist who used the Micromoog for expressive solo passages.
•  Carl Cox – DJ and producer known to integrate the Micromoog into analog sequences in
   electronic music.

The Micromoog found its place in diverse musical genres, from film scores to funk, jazz, and experimental electronic music.

Conclusion

The Moog Micromoog is a compact analog synthesizer, offering unique sonic possibilities at an affordable price. It has become a key instrument in film music, funk, jazz, and experimental electronic production.
With flexible modulation, a sub-octave generator, and the classic Moog ladder filter, the Micromoog has cemented itself as an icon of analog synthesis. Even today, like most Moog instruments, it remains a source of inspiration for many musicians and producers.
