YAMAHA TX816 - When One DX7 Wasn't Enough, the Modular FM Monster Arrived

In the early 1980s, digital synthesis significantly influenced music production. After two decades of analog synthesizer dominance, new technologies emerged that allowed for more complex sound structures, greater control over tone, and programmability that analog instruments simply couldn't offer.

One of the most significant milestones of this period was the Yamaha DX7, introduced in 1983. This synthesizer brought FM synthesis to the mass market and defined the sound of the 1980s. The DX7 became one of the best-selling synthesizers of its time but had certain limitations – particularly its 16-voice polyphony and monotimbral nature, meaning it could only play one sound at a time.

The Birth of TX816 – A Solution for Polyphony and Flexible FM Sound

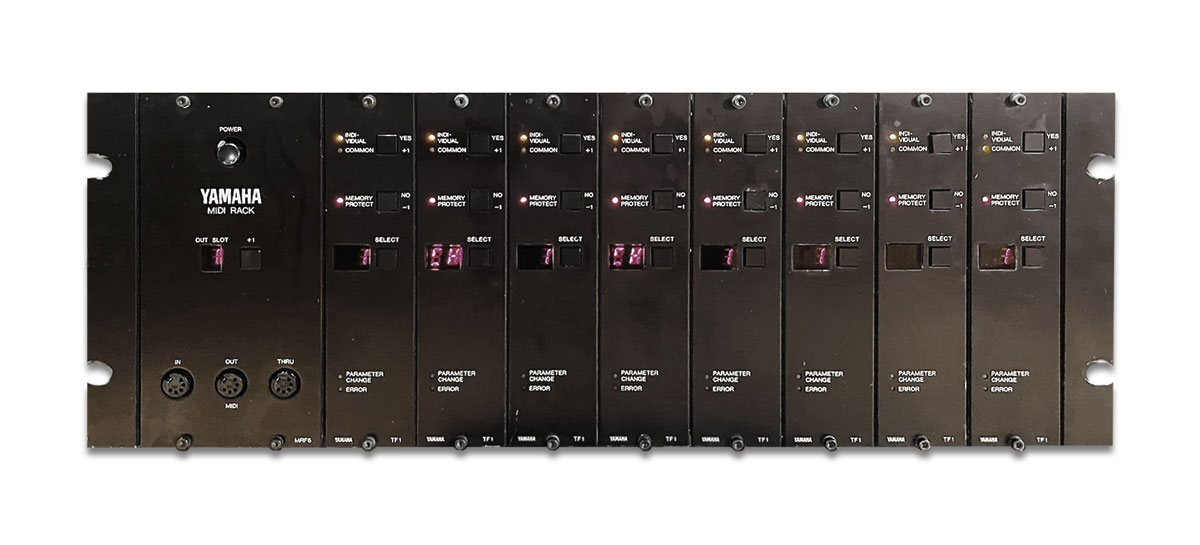

The TX816 was released in 1985, with a price ranging between $2,000 and $5,000, depending on the number of installed TF1 modules. It was a 4U rack module, designed for studio and live performance use.

Yamaha TX816 was conceived as a rack system that expanded the capabilities of FM synthesis by allowing up to eight TF1 modules to be combined. Each TF1 module was a fully functional DX7, meaning the TX816 could offer up to 128 voices of polyphony and the ability to play multiple sounds simultaneously. Thanks to its modular design, TX816 became an extremely flexible instrument, suitable for studio production, film scoring, and live performances.

TX816's Technical Architecture – A Deeper Look into Its Capabilities

The technical architecture of TX816 was unique because each TF1 module had an independent audio output. This allowed producers to mix individual FM layers separately, making it ideal for studio use. Musicians could create deep FM bass sounds with independent modulation, layer multiple sound textures, or combine FM synthesis with external effects such as reverb, delay and chorus.

Key Features of TX816:

•  Up to 8 TF1 modules, each with 16-voice polyphony
•  Total polyphony of up to 128 voices with full configuration
•  Full compatibility with DX7, including the ability to load DX7 presets
•  Independent XLR audio outputs for each TF1 module, enabling precise mixing
•  Multitimbral operation, allowing multiple sounds to be played simultaneously

Installing TF1 Modules into TX816 Rack

TX816 is a modular FM synthesizer that allows the installation of up to eight TF1 modules. Each TF1 module is an independent FM unit inserted into the TX816 rack system. The main board of TX816 is located inside the rack chassis, serving as the central control unit for all TF1 modules.

Preparing the Rack Enclosure

•  TX816 is a 4U rack module, requiring a standard 19” rack enclosure with sufficient depth.
•  A solid mounting is recommended to prevent vibrations and mechanical damage to the
   modules.
•  The rack should provide adequate ventilation, as TX816 generates heat during prolonged
   operation.

Positioning the TX816 Main Board

•  The main board is located at the rear of the rack system, connecting power, MIDI communication,
   and audio outputs.
•  It is linked to TF1 module slots, enabling their independent control and mixing.
•  It houses primary power circuits, distributing electrical energy to individual modules.

Functions of the Main Board

•  MIDI communication management – The main board processes MIDI signals, distributing
   them to individual TF1 modules.
•  Module power distribution – Ensures stable power supply to all connected TF1 units.
•  Audio output connections – Allows independent XLR outputs for each module, providing
   mixing flexibility.

Installing TF1 Modules

•  Each TF1 module is inserted into designated slots within the TX816 rack.
•  The modules have special connectors interfacing with the TX816 main board.
•  Once inserted, each module must be securely mounted to prevent movement during transport.

Connecting Power and Audio Outputs

•  TX816 uses a standard power cable, connected to a power source.
•  Each TF1 module has an independent XLR output, allowing separate mixing of FM layers.
•  If multiple modules are used, a mixer is recommended for efficient audio management.

Connecting MIDI

•  TX816 features shared MIDI IN/OUT/THRU ports, enabling external MIDI device communication.
•  Each TF1 module has independent MIDI inputs, allowing individual control.
•  For complex sequencing, an external MIDI controller or editor is advised for sound programming.

Testing and Configuration

•  After module installation, it is important to verify correct connections and power supply.
•  It is recommended to test each module individually to detect potential issues.
•  If using an external editor, MIDI channels must be configured correctly to ensure proper
   communication between TX816 and the controller.

TX816 is a highly flexible modular system, offering precise control over FM synthesis. Proper installation and configuration ensure stable operation and maximum usability.

Editing Yamaha TX816

TX816 does not feature built-in controls for sound editing. Each TF1 module is a fully functional DX7, but without physical controls, meaning editing can only be done via external MIDI devices or software.

Editing Options for TX816

Using DX7 as an Editing Interface

TX816 was fully compatible with DX7, allowing users to edit sounds on a DX7 and transfer them to TX816 via MIDI.

Software Editors

Specialized editor/librarian programs, such as MOTU Unisyn, Emagic SoundDiver, and Midi Quest, enabled graphical parameter editing via a computer. These programs allowed direct manipulation of FM operators, preset storage, and sound bank organization.

MIDI Controllers

TX816 supported MIDI CC and NRPN messages, meaning parameters could be adjusted via external MIDI controllers.

SysEx Messages

TX816 was capable of handling System Exclusive (SysEx) messages, allowing direct parameter editing via MIDI sequencers or specialized software. SysEx messages were essential for bulk saving and transferring sound banks between TX816 and other FM synthesizers.

TX816 was designed for advanced users, requiring external editors or MIDI controllers for effective sound programming.

PgX7 – External Controller for DX7 and TX816

PgX7 is a specialized hardware editor, providing direct access to FM synthesis parameters without the need for MIDI SysEx programming or a DX7 keyboard.

Unlike DX7, which features menus and a display for sound editing, TX816 has no built-in interface. This means that all parameter adjustments are made externally, either via software, MIDI controllers, or PgX7 itself.

Physical Controls of PgX7

PgX7 is equipped with rotary knobs, allowing instant manipulation of FM synthesis parameters. Each knob is assigned to specific functions, such as:

•  Operator frequency – Adjusts the base pitch of each FM operator.
•  Modulation index – Controls modulation intensity between operators.
•  ADSR envelopes – Determines volume and modulation shaping.
•  Algorithm selection – Enables quick changes to operator routing structures.

Power and Connection

PgX7 uses standard 9V DC power, similar to guitar pedals. It connects to DX7, TX7, or TX816 via MIDI, ensuring instant communication between the editor and synthesizer.

Practical Use

With PgX7, musicians can quickly experiment with FM synthesis, which would otherwise be a complex process. Instead of programming via SysEx messages or slow DX7 menus, they can turn knobs and immediately hear sound changes.

PgX7 is an ideal tool for musicians who want intuitive FM sound editing without the need for extensive programming.

Musicians Who Used Yamaha TX816

TX816 was popular among professional musicians who required greater polyphony and flexibility in FM synthesis. Confirmed users of this synthesizer include:

•  Chick Corea – Jazz pianist who utilized TX816 for complex synthetic textures.
•  Scritti Politti – Experimented with TX816 in creating synthetic pop arrangements.

Conclusion

Yamaha TX816 was a modular FM synthesizer, allowing up to eight TF1 modules to be combined, bringing significantly higher polyphony and flexibility compared to DX7.

Thanks to independent outputs and full MIDI compatibility, it was widely used in studio and live production. TX816 was designed for professional users, working with external editors or MIDI controllers. Today, it remains a valuable collector's item, with its unique sound capabilities and modular design ranking it among the technological peaks of FM synthesis in the 1980s.
