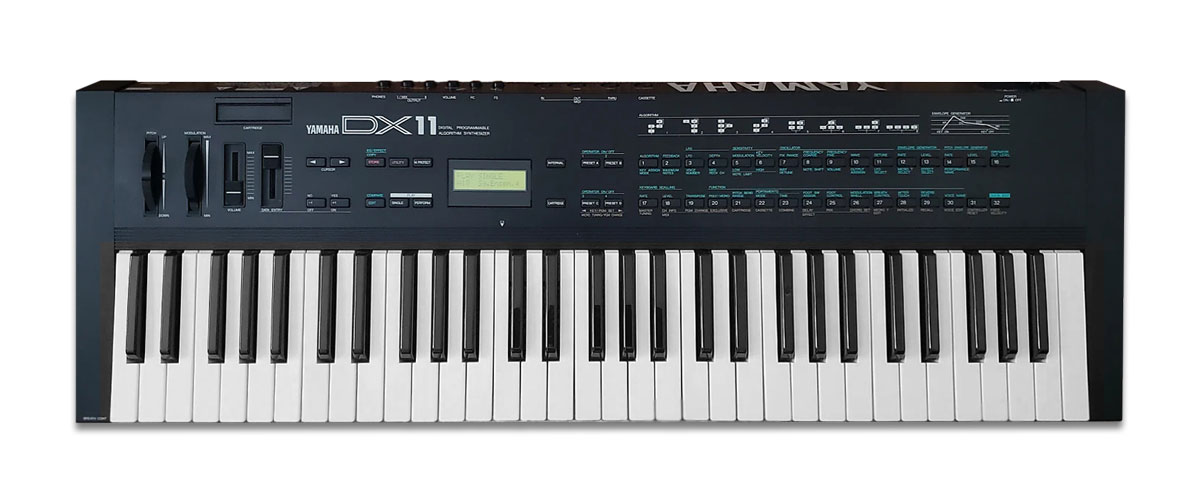

YAMAHA DX11 - Digital FM Synthesizer with Multitimbral Flexibility

The Yamaha DX11 is a digital FM synthesizer, introduced in 1988, featuring 8-voice polyphony and eight-channel multitimbrality. With its ability to store user sound programs and external SAVVY controller, it became a powerful instrument for both studio and live production.

Yamaha DX11 Sound Architecture

The DX11 utilizes four-operator FM synthesis, enabling rich harmonic spectrum and complex sound structures. Unlike older DX models, it offers up to eight different waveforms, significantly expanding sound design possibilities.

Key Features:

•  Polyphony: 8 voices
•  Velocity-sensitive keyboard with mono aftertouch, allowing expressive dynamic control.
•  Eight-channel multitimbral capability, enabling keyboard splitting into multiple sound layers or
   simultaneous playback of different sounds via MIDI.
•  Ability to store user sound programs on a Yamaha DX Data Cartridge RAM card.
•  External SAVVY controller from CHD Elektroservis, produced in collaboration with
   Art of Sound company, providing advanced parameter control and sophisticated random
   sound generation based on internal macro presets.

FM Synthesis – The Technology Behind the Yamaha DX11 Sound

FM synthesis (Frequency Modulation Synthesis) is a digital sound generation method, first introduced by Yamaha with the DX7. The DX11 employs four-operator FM synthesis, allowing complex harmonic structures and rich sound textures.

How FM Synthesis Works:

•  Operators – The fundamental building blocks of FM synthesis. Each operator is an
   independent oscillator that can modulate another operator.
•  Frequency modulation – One operator affects the frequency of another, creating new harmonic
   components and complex sound variations.
•  Algorithms – The DX11 provides various operator configurations, allowing different degrees
   of modulation and sound variability.
•  Multiple waveforms – Unlike older DX models, which used only sine waves, the DX11 offers
   up to eight different waveforms, significantly expanding sound design options.

FM synthesis in the DX11 is a powerful instrument for creating unique digital sounds, offering deep editing, flexible modulation, and a broad spectrum of sonic possibilities.

Saving Sound Programs

The DX11 allows users to store their custom sound presets on a Yamaha DX Data Cartridge RAM card, providing quick access to personal sound settings.

Advantages of RAM Card Storage:

•  Backup and transfer capabilities between different DX11 units.
•  Instant sound preset loading without manual programming.
•  Extended memory capacity compared to built-in storage.

Limited Editing Options in DX11 and Revolutionary Enhancement with SAVVY.

The Yamaha DX11 is a powerful digital FM synthesizer, but its biggest drawback is the limited number of editing controls on the panel. Unlike some other FM synthesizers that offer extensive direct editing, the DX11 has only basic controls, which may restrict creative sound shaping.

Why is editing on DX11 limited?

•  Lack of intuitive controls – Most parameters must be adjusted through menus, slowing down
   workflow.
•  No dedicated knobs for operators – FM synthesis requires precise modulation adjustments,
   but the DX11 lacks quick access to individual operators.
•  Menu-dependent navigation – Instead of direct control, users must navigate complex menu
   structures, which is not ideal for live performance.

Because of these limitations, many musicians seek alternative methods to improve workflow while using the DX11. This is where the SAVVY controller from CHD Elektroservis steps in, completely transforming the way this synthesizer is controlled.

SAVVY – Revolutionary Controller for DX11

SAVVY is an external MIDI controller that translates standard MIDI CC messages into SysEx commands, enabling deeper FM parameter control in real-time. Thanks to this, the DX11 becomes significantly more intuitive and flexible.

Key Features of SAVVY:

•  MIDI CC to SysEx translator, allowing direct FM parameter control without complex
   menu navigation.
•  Macro programming, enabling automated complex sound transformations with a single control.
•  Intelligent random preset generator, allowing fast creation of unique FM sounds without manual
   programming.
•  Sound data archiving, utilizing Bulk Dump MIDI SysEx for backup, transfer, and storage
   of sound settings.

With these features, SAVVY dramatically expands the capabilities of DX11, making it a fully functional tool for experimental music, electronic production, and live performance.

User Reviews on SAVVY

Musicians who use SAVVY with the DX11 praise its editing speed, intuitive control, and deeper sound design possibilities. Here are some opinions:

•  "SAVVY finally lets me control DX11 the way I always wanted. No more complex
   menus – everything is at my fingertips!"
•  "Thanks to the random preset generator, I discovered sounds I would never have programmed
   manually. A great tool for experimental music!"
•  "DX11 has always been a great synthesizer, but its control was frustrating. SAVVY changed
   that completely – now I have full control over FM synthesis!"

These reviews confirm that SAVVY is an essential addition for DX11, unlocking its true potential and making FM synthesis much more efficient to work with.

Hardware Controllers for Yamaha DX11 – Stereoping and Novation ZeRO SL MKII

The Yamaha DX11 is a powerful FM synthesizer, but its limited editing capabilities can be frustrating for musicians who need quick parameter adjustments. Fortunately, there are hardware controllers that completely transform how DX11 is operated, making FM synthesis intuitive and efficient. Among the best choices are Stereoping Synth Controller and Novation ZeRO SL MKII.

Stereoping Synth Controller – Specialized FM Editor

Stereoping Synth Controller is a highly specialized MIDI controller, designed to directly manipulate FM parameters on the Yamaha DX11.

•  16 rotary knobs for quick editing of operators, modulation, and filters.
•  Three layers of parameters, enabling up to 48 parameters instantly accessible.
•  Built-in MIDI CC to SysEx translator, allowing deep FM sound editing.
•  MIDI automation capabilities, making it ideal for studio production.
•  Compact design, easily integrating into any setup.

With Stereoping Synth Controller, the DX11 undergoes a complete transformation, enabling fast and intuitive sound editing, eliminating the otherwise slow and cumbersome menu navigation.

Novation ZeRO SL MKII – Universal MIDI Controller

Novation ZeRO SL MKII is a powerful MIDI controller, fully adaptable for DX11 parameter control.

•  56 physical controls, including encoders, faders, and buttons.
•  Automap software, enabling quick parameter assignment without complex configuration.
•  Touch-sensitive controls, offering instant visual feedback.
•  Large LCD display, showing current parameter values.
•  Multi-device control, making it perfect for complex studio setups.

Novation ZeRO SL MKII is an excellent choice for musicians who need a universal MIDI controller, adaptable for DX11 and other synthesizers.

Yamaha DX11 in Japan – A Model with a Different Name

In the Japanese market, Yamaha DX11 was sold under the name Yamaha V2. This name was not used outside Japan, as it carried unwanted historical associations with V-2 rockets, developed during World War II.

Despite the different branding, Yamaha V2 was identical to the DX11, offering the same four-operator FM synthesis, eight-voice polyphony, and multitimbral functionality. The Japanese version was exclusively available in Japan, meaning many musicians outside the country were unaware of this variant.

This distinction in naming is an interesting example of regional marketing, where manufacturers adjust product branding based on cultural and historical factors. While Yamaha V2 and DX11 are technically the same, their different names reflect the impact of branding on product perception across different markets.

Quality DX11 Keyboard – Ideal as a Studio Master Keyboard

One of the greatest strengths of the Yamaha DX11 is its quality keyboard, featuring velocity-sensitive mechanics with mono aftertouch. This makes it highly expressive, allowing subtle nuances while playing and precise control over sound dynamics.

Why is DX11 a Great Master Keyboard?

•  Smooth and responsive touch – DX11’s keyboard provides a natural playing feel,
   making it ideal for controlling other synthesizers.
•  Mono aftertouch – Allows additional parameter control, such as filter, vibrato, or volume,
   making it perfect for both live and studio performances.
•  MIDI connectivity – DX11 can be easily integrated with other synthesizers, samplers, or DAWs,
   making it a powerful master keyboard.

Musicians often use DX11 as a primary keyboard in the studio, thanks to its responsiveness, MIDI capabilities, and premium mechanics, making it an excellent controller for external synthesizers.

Musicians and Bands That Used Yamaha DX11

The Yamaha DX11 was widely utilized by experimental electronic artists, who appreciated its FM synthesis and multitimbral power. Notable users include:

•  Autechre – Legendary British group specializing in abstract electronic music, using
   DX11 for unique FM synthesis.
•  Mike Paradinas – British electronic producer, known as µ-Ziq, who leveraged DX11 for
   complex FM sounds.
•  Juju & Jordash – Experimental music duo that used DX11 for textured and atmospheric
   electronic sounds.

The DX11 became a favorite among musicians looking for deep FM synthesis capabilities and expressive sound variation.

Conclusion

The Yamaha DX11 is a powerful digital FM synthesizer, combining polyphonic flexibility, multitimbral capabilities, and advanced sound editing. With its velocity-sensitive keyboard, RAM card storage, and external SAVVY controller, it remains an excellent instrument for experimental music, electronic production, and live performances.
