ROLAND JX-8P - A Bridge Between Two Worlds of Synthesis

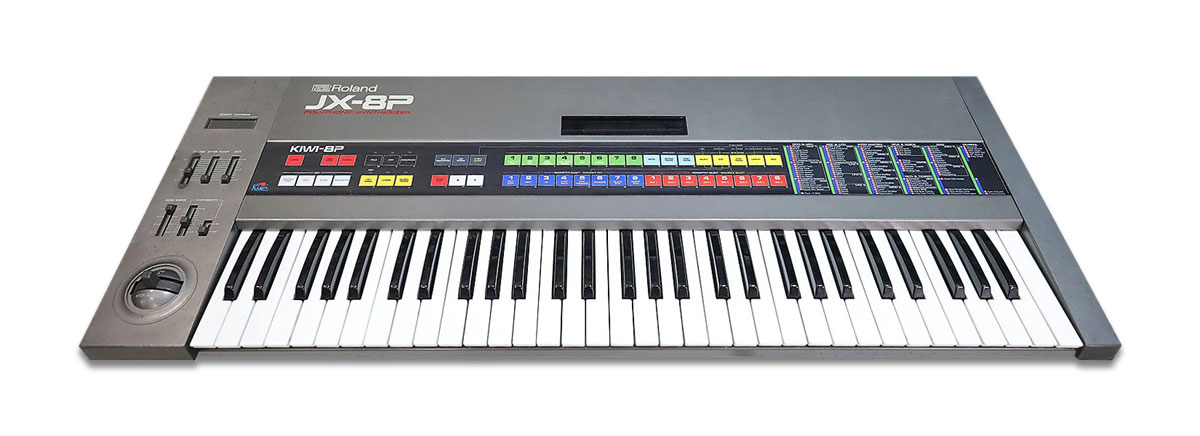

The Roland JX-8P is a six-voice polyphonic synthesizer, introduced in 1985. This instrument represented an evolution in analog synthesis, as it combined classic analog circuits with digital control, allowing for more precise tuning, expanded modulation options, and better MIDI integration.

JX-8P was designed as a professional instrument to compete with the then-popular Yamaha DX7. While DX7 dominated the market thanks to FM synthesis, JX-8P offered a warm analog sound, enhanced by new modulation capabilities, allowing it to create metallic percussive tones characteristic of FM synthesis.

Sound Architecture and Flexibility

JX-8P utilizes two DCOs (digitally controlled oscillators) per voice, giving it stable tuning and rich harmonic possibilities.

Key Components of the Sound Architecture:

•  6-voice polyphony – Enables complex sound layering.
•  Velocity-sensitive keyboard – Responds to playing dynamics, allowing for expressive
   performance.
•  Aftertouch – Adds an additional layer of dynamic control, ideal for live playing.
•  Oscillator Sync, Frequency Modulation, and Cross Modulation – Provide expressive sound
   design possibilities, allowing for metallic and digitally influenced tones.
•  Multi-mode resonant filter (24dB/oct low-pass, high-pass) – Offers fine frequency shaping
   for sound sculpting.
•  Two ADSR envelope generators – One for amplitude, the other for filter, enabling precise
   sound control.
•  One LFO per voice – Allows for modulation of pitch, filter, and amplitude.
•  Built-in stereo chorus – Adds depth and spatial quality to the sound.

Memory and Sound Storage Options

JX-8P includes 64 factory presets and 32 user-programmable memory slots, allowing for custom sound design. Additionally, user sounds can be stored on a RAM card – Roland Memory Cartridge M-16C, providing extra storage space for sound programs.

This feature was essential for musicians looking to expand their sonic palette and have quick access to custom presets during live performances.

JX-8P and Its Digitally-Controlled Oscillators - Are They Actually Analog?

Although often referred to as digitally controlled oscillators (DCOs), the actual sound generation in JX-8P remains analog.

As Roland representatives explained in detail at the time, the JX-8p's DCO oscillator digitally generates a RAW square wave, which is then modified via the analog wave shaper circuit into sawtooth and pulse waveforms.

Unusual Filters and "Solo" Mode

Unlike Roland Juno and Jupiter synthesizers, JX-8P features a unique multi-mode filter (IR3109), also found in the Roland MKS-80 Super Jupiter. This filter supports resonance, although some users noted that it lacks the liveliness of earlier analog models. On the other hand, its 24dB/oct low-pass and high-pass modes allow for smooth synthetic textures, making it ideal for film scoring and ambient music.

One of JX-8P’s lesser-known features is Solo Mode, which merges all oscillators into a single voice, creating an extremely powerful monophonic sound. This mode is perfect for lead sounds requiring an aggressive, full character.

Unique "PWM-Like" Effect

Although JX-8P does not have classic pulse width modulation (PWM) like earlier Roland analog synthesizers , its cross-modulation and oscillator sync allow for similar effects, creating a thicker analog sound.

Factory Sounds Inspired by Real Instruments

One of JX-8P’s unique characteristics was Roland’s attempt to replicate real instruments, which was rare among analog synthesizers of the time. For example, the "Oboe" preset featured gentle harmonic layering, while "Electric Grand" mimicked FM synthesis Rhodes piano tones.

While these sounds did not match the realism of sample-based keyboards, they were a key step toward hybrid synthesizers like the later D-50.

One of JX-8P’s most famous presets was its brass sound, which became iconic in 1980s pop music. This sound was used in Europe's "The Final Countdown", as well as many other tracks. The rich oscillator layering and smooth modulation gave it an expressive character, perfect for epic melodies.

Portamento and Unison Modes

JX-8P’s portamento effect was subtle and smooth, enabling fluid transitions between notes. This effect was frequently used in synth leads, where it added expressive qualities akin to analog synthesizers.

Its Unison mode allowed multiple voices to combine into a single tone, creating a thicker, more powerful sound, ideal for deep bass tones requiring strong presence.

JX-8P Had Slower Envelopes - But Why?

One of JX-8P’s most criticized aspects was its relatively slow envelope response, making it less suitable for fast percussive sounds compared to Prophet-5 or Oberheim OB-8. This was due to digitally controlled envelope curves, which resulted in smoother attacks, but less aggressive transient response.

JX-8P Had Better MIDI Implementation Than JX-10

Ironically, JX-8P featured better MIDI implementation than its successor, JX-10, as it supported real-time parameter editing via MIDI. JX-10 utilized two independent sound boards, meaning it could not receive all MIDI commands simultaneously, whereas JX-8P had a simpler yet more effective MIDI architecture.

Unique "Chorus II" Effect

JX-8P included two chorus variants, with Chorus II being particularly popular due to its wider stereo effect and richer sound. This chorus was similar to the Roland Juno-60, but featured gentler modulation, making it ideal for pads and synthetic textures.

Construction and Design

JX-8P was built with a full-metal chassis, making it robust and durable. Unlike many plastic synthesizers of the time, its solid construction ensured longevity, allowing it to withstand extensive touring and intense studio use.

Roland PG-800 – A Programmer for JX-8P

JX-8P was designed with a digital interface, utilizing membrane buttons and a single data slider for parameter editing. For musicians who sought greater control over sound design, Roland offered the PG-800 programmer.

Key Features of PG-800:

•  Physical parameter control – Provides direct access to all JX-8P functions.
•  Connection via proprietary interface – Enables fast sound editing.
•  Dedicated knobs for oscillators, filters, envelopes, and LFO – Simplifies sound programming.
•  Can be placed directly on JX-8P – Designed to mount on the synth’s top panel, offering easy
   access during performance.

PG-800 is a must-have accessory for musicians seeking deep control over their JX-8P sound design.

Connectivity and MIDI Features

The JX-8P is equipped with MIDI In/Out 5-pin DIN connectors, enabling integration with external sequencers, DAWs, and other synthesizers.

Key MIDI Functions:

•  Basic MIDI message support – Note On/Off, Pitch Bend, Hold, Modulation, and Program Change.
•  Connection with external MIDI devices – Synchronization with other synthesizers and sequencers.
•  Advanced MIDI implementation – Unlike the JX-3P, it supports real-time parameter editing
   via MIDI, allowing for automation of sound changes.

The JX-8P was one of the most advanced Roland synthesizers with MIDI, making it a historically significant instrument in the digital revolution of music technology.

Artists Who Used Roland JX-8P

The Roland JX-8P was a favorite instrument among musicians who appreciated its analog sound combined with digital control. Notable artists who used the JX-8P include:

•  Europe – JX-8P was featured in the iconic intro of "The Final Countdown".
•  The Cure – Incorporated JX-8P into their experimental sound design.
•  Future Sound of London – Used JX-8P for electronic and cinematic sounds.
•  Jean-Michel Jarre – Used JX-8P for synthetic textures and ambient sounds.
•  Depeche Mode – Utilized JX-8P for dark synthetic pads.
•  Tangerine Dream – Used JX-8P for complex layering in ambient music.
•  808 State – Featured JX-8P in early acid house production.

Thanks to its blend of analog synthesis and digital sequencing, the JX-8P remains a timeless synthesizer still appreciated today.

Conclusion

The Roland JX-8P is a unique analog synthesizer, ushering in a new era of sound design thanks to digital control, a velocity-sensitive keyboard with aftertouch, advanced MIDI implementation, and PG-800 expandability. Its six-voice polyphony, expressive modulation options, and built-in chorus effect made it a beloved instrument for electronic musicians. To this day, JX-8P remains sought after by artists, offering classic analog warmth alongside modern connectivity features.
