ROLAND SH-101 - The Analog Synthesizer That Defined Techno and Acid House

Roland SH-101 is not just another analog synthesizer. It is an icon that defined the sound of techno, house, electro, and drum & bass. When it was introduced in 1982, it seemed modest—simple design, monophonic architecture, no effects. But it is precisely this simplicity that hides its uncompromising power.

SH-101 is built on the Curtis CEM 3340 chip, which is also found in other legendary instruments such as Jupiter-6 (JP6), MKS-80, and SH-09. Thanks to this, it has stable oscillators and a distinctive analog sound that cuts through the mix like no other synthesizer.

SH-101 Color Variants – Why Did Roland Experiment With Colors?

At a time when most synthesizers were black or gray, Roland decided to stand out. SH-101 was produced in three color variants:

•  Gray – The standard version, the most common on the market.
•  Blue – A limited edition, less frequent.
•  Red – Another limited edition that became a collector’s item.

There is also an extremely rare white version, which was produced in limited quantities. Roland wanted SH-101 to be not just an instrument but also a visual element on stage.

SH-101’s Sound Architecture – Why Will Its Sound Never Disappear?

SH-101 is monophonic, meaning it can play only one note at a time. But precisely because of this, it is ideal for bass lines, leads, and arpeggios.

Key Sound Features:

•  Single VCO with three mixable waveforms – Offers sawtooth, square with PWM, and a
   sub-oscillator.
•  Sub-oscillator – Option to add -1 or -2 octave square or pulse wave, adding depth to the sound.
•  Low-pass filter (VCF) with resonance – Modulation possible via ADSR, LFO, key tracking,
   and bender.
•  Simple but effective LFO – Offers triangle, square, random, and noise waveforms.
•  Arpeggiator and sequencer – Allows quick creation of rhythmic sequences.

SH-101 has a fast and sharp response, making it a perfect instrument for dynamic bass lines and expressive leads.

SH-101 as a Keytar – Freedom on Stage

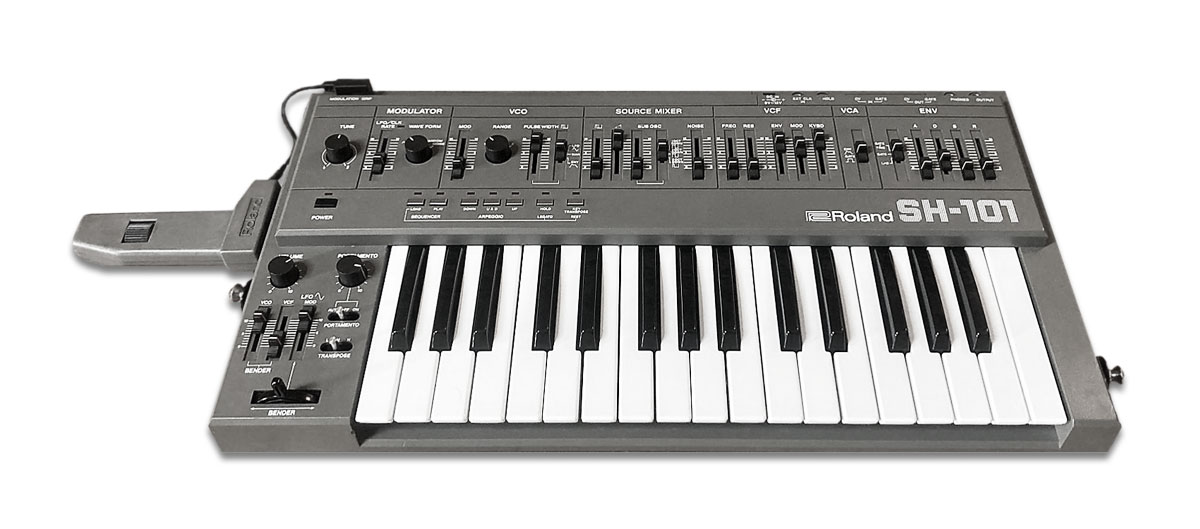

One of the unique features of SH-101 was the ability to attach a special grip MGS-1 with modulation controls and a strap, allowing it to be played like a keytar.

This function was part of a marketing campaign, promoting SH-101 as an instrument for free musical expression. Although it did not catch on as a mainstream keytar, its compact design and battery power made it easy to use on stage.

Arpeggiator

The arpeggiator in the Roland SH-101 is simple yet highly effective. Unlike more complex arpeggiators found in modern synthesizers, it offers direct control, allowing for quick and intuitive sequencing.

Key Features of the SH-101 Arpeggiator:

•  Synchronization with an external clock – The SH-101 can be synced with an external
   sequencer or drum machine, ensuring perfect timing in production.
•  Portamento in the arpeggiator – If portamento is activated, the arpeggiator smoothly
   transitions between notes, creating fluid glissando effects.
•  Note hold function (HOLD) – When the HOLD function is activated, the arpeggiator continues
   playing the sequence even after the keys are released.
•  Combination with LFO – If the LFO is set to high frequencies, it can modulate the filter or
   oscillator, adding movement and dynamism to the arpeggiator.

Why is the SH-101 Arpeggiator Unique?

•  Simplicity and efficiency – Unlike complex arpeggiators in modern synthesizers, the SH-101
   is immediately playable and intuitive.
•  Perfect for acid house and techno – Many producers have used the SH-101 arpeggiator to
   create iconic acid sequences.
•  Analog character – Thanks to its analog architecture, the arpeggiator produces a vibrant,
   organic sound, fitting seamlessly into a mix.
•  Compatibility with external sequencers – The SH-101 can be connected to Roland TB-303,
   TR-808, or other analog instruments, allowing for complex rhythmic structures.

Additional Technical Details of the Roland SH-101

Oscillator Range – From Deep Sub-Bass to Sharp Highs

The Roland SH-101 has an expanded oscillator range, allowing tonal variations from extremely deep bass to crisp highs. It offers four levels of octave range:

•  16' – Deep, dark bass, perfect for low-end electronic lines.
•  8' – A balanced frequency range for classic synth sounds.
•  4' – Sharper tones, ideal for lead lines.
•  2' – Thin, high frequencies suitable for percussive and experimental sounds.

Thanks to this flexible oscillator, the SH-101 can be used not only for bass sounds but also for driving leads and sequences, making it a staple in techno, acid house, and electronic production.

Additional LFO Waveforms – How to Expand Modulation

The SH-101 is equipped with a single LFO, but its modulation capabilities are richer than they appear. In addition to standard waveforms, it offers:

•  Triangle – Smooth modulations ideal for vibrato and filter sweeps.
•  Square – Sharp, step-based changes, perfect for rhythmic effects.
•  Random – Unpredictable modulations, adding organic movement to analog sounds.
•  Noise – Chaotic modulation, creating distortion effects and experimental textures.

The LFO can be routed to the oscillator (VCO), filter (VCF), or amplifier (VCA), allowing for moving sequences, pulsating bass lines, or evolving modulations, which are difficult to achieve with digital synthesizers.

VCA Tone Control – Hidden Details of the Amplifier

While most synthesizers have simple VCA controls, the SH-101 allows precise shaping of volume through the ADSR envelope or directly via Gate.

Key Features:

•  ADSR-controlled volume – Smooth fade-in and fade-out, creating a natural dynamic curve.
•  Gate-only mode – Instant response without affecting dynamics.
•  Portamento integration – Allows gliding between notes, ideal for acid and expressive sequences.

Thanks to this detailed amplifier control, the SH-101 can be adapted not only for classic analog tones but also for experimental textures and sequenced effects.

External Modulation Inputs – How to Connect SH-101 to Other Machines?

One of the most underrated features of the SH-101 is its ability to interact with other analog instruments.

Thanks to CV/Gate inputs and outputs, the SH-101 can:

•  Synchronize with Roland TB-303 – The perfect pairing for acid house sequences.
•  Connect to analog drum machines (TR-808, TR-909) – The SH-101 can sync with drum
   machine rhythms, creating dynamic groove sequences.
•  Use external sequencers – An external CV/Gate signal can control pitch, allowing for creative
   modulations and efficient sequencing.

By integrating the SH-101 with other analog instruments, it is possible to create complex sequences, evolving structures, and rhythmically rich soundscapes, which cannot be easily replicated with digital synthesis.

Manufacturing the Roland SH-101 – How an Analog Legend Was Born

The SH-101 Production Process

The Roland SH-101 was manufactured between 1982 and 1986 in Japan, where Roland operated its main production facilities. The manufacturing process involved both manual and automated assembly, with a strong emphasis on precise installation of analog components.

•  Hand-assembly of key components – For example, the Curtis CEM3340 oscillator was
   carefully tested before installation.
•  Plastic casing – The SH-101 had a durable plastic enclosure, which was lightweight yet resistant
   to everyday wear.
•  Keyboard assembly – The keyboard was mechanically tested to ensure consistent key response.
•  Color variants – Each color version (gray, blue, red) was produced through the same process
   but with different plastic compositions.

Quality Control – How Did Roland Ensure SH-101's Reliability?

In the 1980s, Roland adhered to strict quality standards, meaning that every SH-101 underwent multiple tests before leaving the factory.

Key Quality Control Processes:

•  Oscillator testing – Every CEM3340 chip was checked for frequency stability.
•  Filter calibration – The low-pass filter was adjusted to ensure consistent response.
•  Keyboard testing – Each key was tested for uniform touch sensitivity and response.
•  Electronic diagnostics – The SH-101 was connected to measurement instruments to verify
   the proper functioning of all circuits.

Thanks to these tests, the SH-101 was known for high reliability, which is why many of these synthesizers continue to operate flawlessly even after 40 years.

The Biggest Weaknesses of the SH-101 – What Wasn't Perfect?

Although the SH-101 is a legendary synthesizer, it had a few weak spots that became evident over time.

Plastic Construction

Unlike metal synthesizers such as Moog Minimoog or ARP Odyssey, the SH-101 had a plastic casing, which was prone to cracking. If the SH-101 was exposed to extreme temperatures, the plastic could become brittle and crack.

Keyboard – Stiff Action

The keyboard had a relatively stiff action, making it less ideal for expressive playing. Many musicians used external MIDI keyboards for more comfortable playing.

Behringer MS-1 – A Modern Alternative to the Roland SH-101

The Behringer MS-1 is a current version of the classic Roland SH-101, preserving the original analog architecture while adding several enhancements. This synthesizer is designed to deliver the same thick monophonic sound as the SH-101 while incorporating modern features for expanded production possibilities.

MS-1 closely replicates the SH-101's sound, but with a few differences (Frequency Modulation for example). The filter response is slightly sharper, and the LFO operates within a faster frequency range. Overall, the MS-1 has a slightly more aggressive tone than the SH-101, which feels somewhat warmer and more organic.

Artists Who Used SH-101

•  GusGus – Icelandic electronic group known for deep analog sounds and experimental production.
•  808 State – Pioneers of acid house, using the SH-101 for iconic bass lines.
•  Squarepusher – Experimental electronic artist known for aggressive analog tones.
•  Madonna – Used SH-101 in some productions during the 1990s.
•  Portishead – Trip-hop band featuring atmospheric sounds with analog character.
•  Luke Vibert – Acid and breakbeat producer known for distinctive SH-101 sequences.
•  Trans-X – "Living on Video" features typical SH-101 synth lines.
•  Plaid – Complex electronic compositions built on analog foundations.
•  Leftfield – Electronic grooves featuring rich analog textures.
•  DJ Pierre – Acid house pioneer who used SH-101 for signature acid sounds.

Conclusion

The Roland SH-101 remains one of the most distinctive analog synthesizers, earning legendary status due to its characteristic sound, simple controls, and unique features.

Thanks to its Curtis CEM 3340 chip, color variants, and keytar option, it has become a beloved instrument among electronic music producers.
