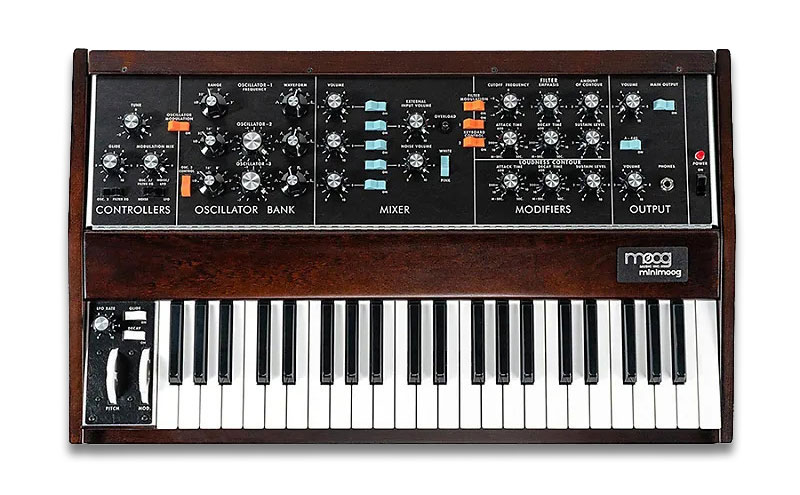

MINIMOOG MODEL D - An Icon of Analog Synthesis

The Minimoog Model D is a monumental instrument in the history of music technology, celebrated for its impact on analog synthesis and modern music. First introduced in 1970, this portable monophonic synthesizer revolutionized the way musicians interacted with electronic instruments. It offered simplicity, flexibility, and an unforgettable sound. The Minimoog is often considered the defining sound of several musical genres and remains a symbol of creative freedom for musicians worldwide.

History of the Minimoog Model D

Origins and Development

Before the Minimoog era, synthesizers were large modular systems requiring extensive patching to create even the simplest sounds. While powerful, these systems were inaccessible to most musicians due to their complexity, size, and cost. Robert Moog and his team recognized the need for a portable, affordable, and intuitive synthesizer suitable for live performances.

Development began in 1969 with early prototypes labeled Models A, B, and C. These experiments explored the integration of a built-in keyboard with fixed signal paths, moving away from modular design. In 1970, the Minimoog Model D was born—an enhanced version ready for commercial release. Its compact design, simplified controls, and standalone functionality marked a turning point in electronic music.

Revisions of the Minimoog Model D (1971–1981)

Between 1971 and 1981, the Minimoog Model D underwent three circuit board revisions. Although these revisions were not officially marked in serial numbers, they can be identified as follows:

•  Revision 1 – Serial Number: 1001-xxxx
•  Revision 2 – Serial Number: Unknown
•  Revision 3 – Serial Number: 10175-xxxx (featuring a different oscillator board)

These changes contributed to the evolution of sound and reliability, with the most significant differences found in Revision 3, which featured an improved oscillator board.

Technical Description – The Key Electronic Elements

Oscillators

At the core of the Minimoog Model D are three oscillators, each capable of generating various waveforms:

•  Triangle wave – Smooth, soft tones ideal for bass and ambient sounds.
•  Sawtooth wave – Full, harmonically rich tones perfect for leads.
•  Square and pulse waves – Distinctive sounds often used for modulated effects.

The oscillators can be slightly detuned to create  rich, chorused textures, defining the unmistakable Minimoog sound.

Noise Generator

•  White Noise  – Typically to recreate percussive instruments such as cymbals and snare drums.
•  Pink Noise – Wind sound effects, etc.

Moog Ladder Filter – Revolutionary design & Unique sound


The Moog Ladder Filter was developed by Robert Moog in the 1960s as part of his modular synthesizer systems. His goal was to create a smooth, musical filter that allowed musicians to shape sound naturally. The ladder filter became the defining feature of the Minimoog Model D, establishing its warm and saturated tone.

How the Ladder Filter works

The ladder filter is a transistor-based low-pass filter that gradually reduces higher frequencies. Its unique construction includes a series of transistors arranged in a “ladder”, working with capacitors to filter the signal.

The Ladder Filter characteristics

•  Smooth frequency response – Natural sound without harsh transitions.
•  Warm analog character – Gentle saturation adds depth and richness.
•  Resonance (self-oscillation) – At higher resonance settings, the filter begins oscillating, enabling
   unique effects.
•  Dynamic response – The filter reacts musically to input signals, enhancing expressive playability.

Technical Structure of the Ladder Filter

The filter consists of eight transistors interconnected with capacitors. The audio signal passes through these transistors, gradually attenuating higher frequencies.

•  Cutoff frequency – Determines where high frequencies begin to be filtered.
•  Resonance – Amplifies frequencies near the cutoff point, creating a distinctive "ringing" effect.
•  2-pole vs. 4-pole modes – The ladder filter can operate at 12 dB/octave (2-pole) or 24 dB/octave
   (4-pole) slopes, affecting the aggressiveness of filtering.

Why is the Moog Ladder Filter Unique?

Unlike conventional filters, the Moog Ladder Filter adds subtle saturation, giving sound an organic richness and natural dynamics.

•  Impact on music – The ladder filter became a standard in analog synthesis, influencing many other
   manufacturers.
•  Use in modern instruments – Moog continues using the ladder filter in modern synths, including the
   Moog Subsequent 37, Moog Matriarch, Moog Grandmother, etc.

Modern Reissues of the Minimoog (2016 & 2022)

Decades after its legendary status was established, the Minimoog Model D was reissued in limited series in 2016–2017 and than in 2022 (still on sale for now in 2025):

•  2016–2017: Moog Minimoog Model D Reissue 2016 – Featuring a MIDI interface,
   dedicated LFO, velocity-sensitive keyboard with aftertouch and enhanced electronics for stability.
•  2022: Moog Minimoog Model D Reissue 2022 – Includes additional refinements, such as a
   spring-loaded Pitch-Wheel for improved modulation control and an updated wood type for
   the side panels.

Cultural & Musical Influence of the Minimoog

Minimoog in Iconic Songs

The Minimoog Model D was used in groundbreaking tracks that shaped electronic and popular music:

•  Pink Floyd – "Shine On You Crazy Diamond"
•  Gary Numan – "Cars"
•  Herbie Hancock – "Chameleon"
•  Jean-Michel Jarre – "Oxygene"

Artists Who Used the Minimoog Model D

The Minimoog Model D was a key instrument for many musicians across various genres, for example:

Classic Legends:

•  Keith Emerson (ELP) – Progressive rock solos.
•  Rick Wakeman (Yes) – Epic synthesizer passages.
•  Herbie Hancock – Jazz fusion compositions.
•  Vangelis – Epic electronic music (Blade Runner Blues, Conquest of Paradise)
•  Gary Numan – Synth-pop hit (Cars).
•  Jean-Michel Jarre – Electronic music (Oxygene).
•  Ultravox  – Synth-pop hit (Vienna)

Contemporary Artists:

•  Depeche Mode – Synth-pop hits (Stripped, Personal Jesus,etc.).
•  Trent Reznor (Nine Inch Nails) – Dark, industrial textures.
•  Daft Punk – Analog warmth in Random Access Memories.
•  Vince Clark – (Erasure)
•  Hans Zimmer – Film scores featuring analog synthesis.
•  Tycho – Ambient and chillwave productions.

Conclusion

The Minimoog Model D remains a timeless innovation in music technology, praised for its simplicity, unmatched sound, and profound cultural impact. It continues to inspire artists, securing its place as a true icon of analog synthesis.
